Description

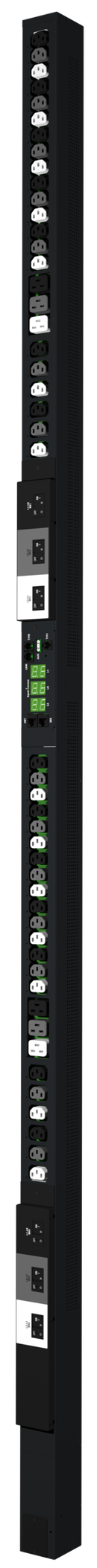

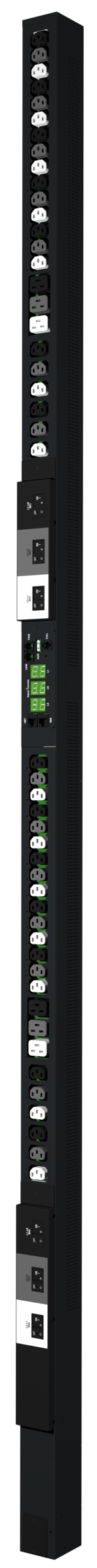

The Server Technology® PRO2 Smart PDU C2S48TE-5CAE2M99 (Primary) delivers advanced power monitoring and reliable distribution for high-density data centers. Designed with HDOT Cx hybrid outlets, it supports both C14 and C20 plugs, ensuring maximum flexibility.
With PIPS® per-inlet power sensing, the unit provides billing-grade accurate measurements of current, voltage, power, crest factor, and energy consumption. Integrated network monitoring offers access via HTTP(S), SSH, Telnet, SNMP, and more.
This PDU supports branch circuit protection with UL-rated circuit breakers, temperature/humidity monitoring, auto-flip LED current displays, and alternating-phase outlet configurations for simplified load balancing. Built for durability, it is rated for operation in environments up to 60°C.
The C2S48TE-5CAE2M99 can be linked with up to three “Link” PDUs, providing seamless redundancy and extended network access without the risks of daisy chaining.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | PRO2 Smart PDU |
| Model / SKU | C2S48TE-5CAE2M99 (Primary) |
| Outlets | 30 × IEC C13 (≤12A @240V L-N, 15A peak) 18 × HDOT Cx hybrid (≤16A @240V L-N, 20A peak) |
| Input Voltage | 415V, 50/60 Hz |
| Input Plug | NEMA L22-30P |
| Input Current (Max / Rated) | 30A / 24A |
| Power Capacity | 17.3 kW |
| Branch Circuit Protection | UL 489 rated 2-pole, 20A trip breakers (6 branches, ≤16A rating, 10 kAIC NA / 5 kAIC RoW) |
| Monitoring | PIPS® per inlet power sensing, branch current monitoring, auto-flip LED display |
| Network Interfaces | Ethernet (10/100/1000 Mbps), RS-232 serial, SNMPv2/v3, HTTPS/SSH/Telnet, LDAP/LDAPS, TACACS+, RADIUS |
| Environmental Range | Operating: 0–60°C (32–140°F), 8–90% RH non-condensing Storage: -30–80°C (-22–176°F) |
| Dimensions (H×W×D) | 80.0" × 2.2" × 2.5" (2032 × 56 × 64 mm) |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Part 15, CAN ICES-003 |
| Warranty | 2-Year Limited (Extended support available) |
| Optional Accessories | EMTH-2-10 Temp/Humidity probe, EMCU-1-1C Env. Monitor, PRO2 Link Kits, StartUp Stick™, cable retention devices |
