Description

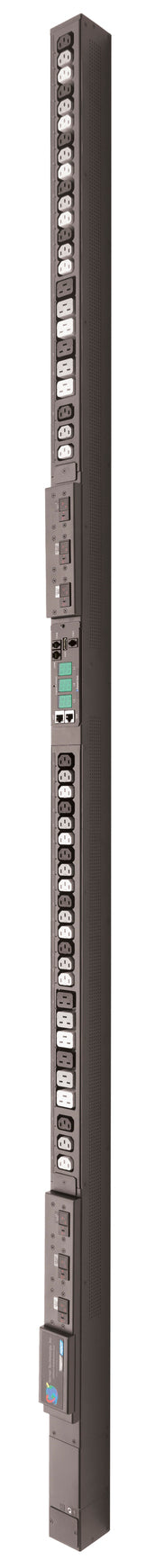

The Server Technology® PRO2 Smart PDU C2S48CE-DFME2M66 (Primary) delivers industry-leading intelligent power distribution for high-density data centers. With 48 outlets (36 × IEC C13 and 12 × IEC C19), this unit supports 14.4kW at 208V, 50A input, ensuring reliable capacity for mission-critical equipment.
Equipped with Per Inlet Power Sensing (PIPS®) and Branch Circuit Monitoring, the PRO2 Smart PDU provides billing-grade accurate measurement of current, voltage, power factor, crest factor, and accumulated energy. Built-in network connectivity supports HTTP(S), SNMP, SSH, Telnet, LDAP(S), Syslog, and more for seamless remote monitoring and management.
Additional features include hot-swap network cards, star multi-linking for up to four PDUs under one IP, temperature/humidity monitoring with optional probes, and alternating-phase outlets for simplified load balancing. Its HDOT® (High Density Outlet Technology) ensures maximum density and airflow efficiency, while compliance with UL 62368-1 and IEC/EN 60947-2 guarantees safety.
Ideal for enterprise IT environments, the C2S48CE-DFME2M66 is engineered for 60°C high-temperature operation, with flexible mounting options and color-coded chassis for circuit identification.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Series | PRO2 Smart PDU |
| Model / SKU | C2S48CE-DFME2M66 (Primary) |
| Outlets | 36 × IEC 60320 C13, 12 × IEC 60320 C19 |
| Input Plug | CS8365 3P+G, 50A |
| Input Voltage | 208V, 50/60Hz |
| Input Current (Rated) | 40A |
| Power Capacity | 14.4 kW |
| Branch Circuit Protection | (6) × 2-pole, 20A breakers; UL 489, IEC/EN 60947-2 compliant |
| Monitoring Technology | PIPS® Per Inlet Power Sensing, Branch Circuit Monitoring |
| Network Interfaces | HTTP/HTTPS, SNMP v2c/v3, SSHv2, Telnet, LDAP(S), Syslog, RS-232 |
| Temperature/Humidity Monitoring | Supports 2 × external probes (optional) |
| Physical Dimensions | 80.0" H × 2.2" W × 2.5" D (2032 × 56 × 64 mm) |
| Operating Environment | 0–60°C, 8–90% RH, up to 6,500 ft |
| Certifications | UL 62368-1, CSA C22.2, FCC Part 15 Class A, ICES-003 Class A |
| Warranty | 2-year limited (parts & labor); extended support available |
