Description

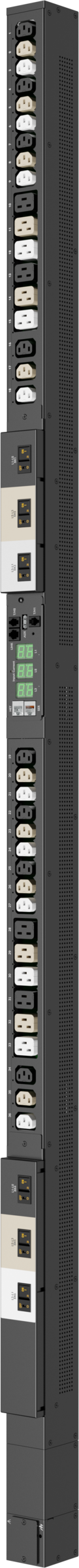

The Server Technology® PRO2 C2W36TE-DQME2M99 Switched PDU is designed for high-density data centers requiring advanced power monitoring, outlet control, and robust protection. This Primary PDU integrates PIPS® (Per Inlet Power Sensing) technology for billing-grade accurate measurements of current, voltage, power, crest factor, and energy at the inlet level. It supports local LED current monitoring, per-branch current monitoring, and provides SNMP/email alerts to ensure operational safety.
Featuring HDOT Cx hybrid outlets (supporting both C14 and C20 plugs), this unit offers flexible, future-ready connectivity. IT administrators can securely monitor and manage power through multiple network protocols, including HTTPS, SNMPv3, SSH, LDAP(S), and RADIUS. With hot-swap network card support, star multi-linking for up to four PDUs on one IP, and a high-temperature rating of 60°C, this PDU is engineered for reliability and scalability.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (a Legrand brand) |
| Product Series | PRO2 |
| Model | C2W36TE-DQME2M99 |
| Product Type | Switched PDU (Primary) |
| Outlets | 18 × IEC 60320 C13 (≤12A @208V L-L, 15A peak)18 × Cx hybrid outlets (≤16A @208V L-L, 20A peak) |
| Plug / Input | IEC 60309 3P+G 9Hr (208V Delta 60A) |
| Input Voltage | 208V, 50/60 Hz |
| Input Current (Rated) | 48A |
| Power Capacity | 17.3 kW |
| Monitoring | PIPS® (per inlet power sensing), branch current monitoring, temperature/humidity probe support |
| Outlet Control | Remote on/off/cycling of individual or groups of outlets |
| Network Interfaces | 10/100/1000 Mbps Ethernet (RJ-45), RS-232 serial (RJ-45) |
| Protocols Supported | HTTP/HTTPS, SSH, Telnet, SNMP v2/v3, FTP/SFTP, Syslog, LDAP(S), TACACS+, RADIUS |
| Branch Protection | UL 489 2-pole, 20A trip circuit breakers (six branches) |
| Dimensions | 70.0" H × 2.2" W × 2.5" D (1778 × 56 × 64 mm) |
| Environment | Operating: 0–60 °C, 8–90% RH non-condensingStorage: -30–80 °C |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Class A, CAN ICES-003 Class A |
| Warranty | 2-year limited parts & labor (extended options available) |
| Optional Accessories | Temperature/humidity probes, environmental monitor (EMCU-1-1C), water sensor, cable retention devices |
