Description

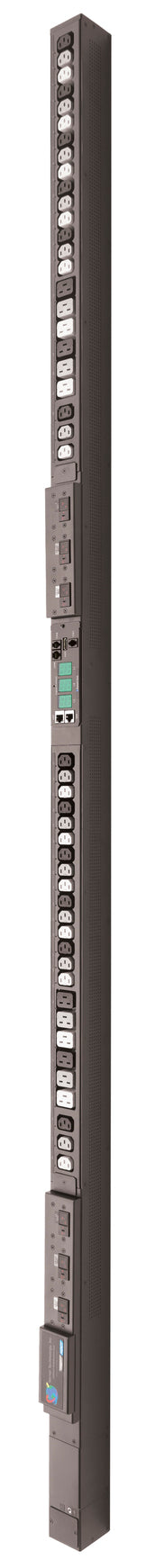

The Server Technology® PRO2 C2W48TE-DFME2M99 Switched PDU delivers advanced power distribution and management for high-density data center environments. Designed with HDOT Cx outlets, this PDU supports both C14 and C20 plugs, offering unmatched flexibility and superior cable retention.
Equipped with PIPS® (Per Inlet Power Sensing) and branch current monitoring, it provides billing-grade accurate measurements of current, voltage, power, and energy. Integrated network access allows secure monitoring and control via Web, CLI, or SNMP, while hot-swappable network cards ensure continuous uptime.
With features such as outlet-level switching, alternating-phase outlets for simplified load balancing, and a high-temperature rating (up to 60°C), the PRO2 Switched PDU is ideal for demanding enterprise applications. Flexible mounting options, color-coded PDUs, and environmental sensor support make it a versatile choice for reliable power management.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line / Series | PRO2 / Switched |
| Model / Part Number | C2W48TE-DFME2M99 |
| PDU Type | Switched |
| Input Voltage | 208V, 50/60 Hz |
| Input Plug | CS8365 3P+G 50A |
| Input Current | 50A (Rated: 40A) |
| Power Capacity | 14.4 kW |
| Outlets | 30 × IEC 60320 C13, 18 × HDOT Cx (C13/C19 hybrid) |
| Branch Circuit Protection | UL 489 magnetic-hydraulic circuit breakers, 6 branches, ≤16A |
| Monitoring | PIPS® per-inlet sensing, branch current monitoring, auto-flip current display |
| Network Access | HTTP/HTTPS, SSH, Telnet, SNMPv2/v3, LDAP(S), RADIUS, TACACS+, FTP/SFTP |
| Interfaces | 10/100/1000 Ethernet (RJ-45), RS-232 (RJ-45), Link port (RJ-12) |
| Sensors | Supports 2× external temperature/humidity probes (optional) |
| Dimensions (H×W×D) | 80.0" × 2.2" × 2.5" (2032 × 56 × 64 mm) |
| Operating Temp. | 0–60 °C (32–140 °F) |
| Certifications | UL 62368-1, CSA 62368-1, FCC Part 15 Class A, CAN ICES-003 Class A |
| Warranty | 2-year limited parts & labor (extendable) |
