Description

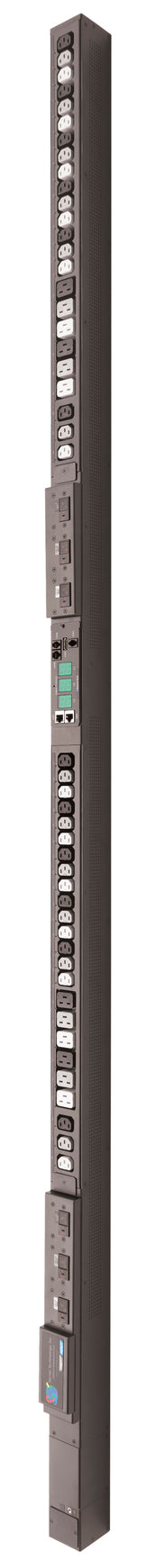

The Server Technology® PRO2 C2W54CE-DFME2M00 Switched PDU (Primary) is a high-density, network-connected power distribution unit designed for modern data centers. Featuring 54 IEC C13 outlets, this PDU delivers robust outlet control, advanced monitoring, and reliable branch circuit protection.
With Per Inlet Power Sensing (PIPS®) technology, IT managers can precisely measure current, voltage, active and apparent power, crest factor, power factor, and accumulated energy. Integrated temperature and humidity sensor support provides real-time environmental data with SNMP alerts and email notifications.
This unit includes alternating-phase outlets for balanced loads, a hot-swappable network card for redundancy, and HDOT (High Density Outlet Technology) for maximum outlet density and secure connections. Built for demanding environments, the PRO2 PDU operates safely at temperatures up to 60 °C, making it an ideal solution for high-density, mission-critical data centers.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | PRO2 |
| Model | C2W54CE-DFME2M00 |
| Product Type | Switched PDU (Primary) |
| Outlets | 54 × IEC 60320 C13 |
| Input Voltage | 208V AC, 50/60 Hz |
| Input Plug | CS8365 3P+G 50A |
| Input Current (Rated) | 40A (50A max) |
| Power Capacity | 14.4 kW |
| Branch Circuit Protection | Six (6) × 2-pole 20A magnetic-hydraulic breakers, UL 489/CSA C22.2 No. 5 compliant |
| Dimensions | 80.0 in × 2.2 in × 2.5 in (2032 mm × 56 mm × 64 mm) |
| Operating Temperature | 32°F to 140°F (0°C to 60°C) |
| Storage Temperature | -22°F to 176°F (-30°C to 80°C) |
| Communications | Ethernet (10/100/1000 Mbps RJ-45), RS-232, SNMP v2c/v3, SSH, HTTPS, Telnet, LDAP/LDAPS, RADIUS, TACACS+ |
| Monitoring | PIPS® per-inlet power sensing, branch current monitoring, outlet-level control |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Part 15 Class A, CAN ICES-003 Class A |
| Warranty | 2-Year Limited (parts & labor), with extended options available |
| Optional Accessories | EMTH-2-10 T/H probe, EMCU-1-1C environmental monitor, PRO2 linking kits, StartUp Stick™ |
