Description
The Server Technology PRO2 Switched POPS PDU (Primary) delivers advanced outlet control, precise power monitoring, and reliable branch circuit protection for high-density data center environments. Equipped with PIPS® (Per Inlet Power Sensing) and POPS® (Per Outlet Power Sensing), this PDU provides billing-grade accurate measurement of current, voltage, active/apparent power, crest factor, power factor, and energy consumption at both the inlet and outlet levels.

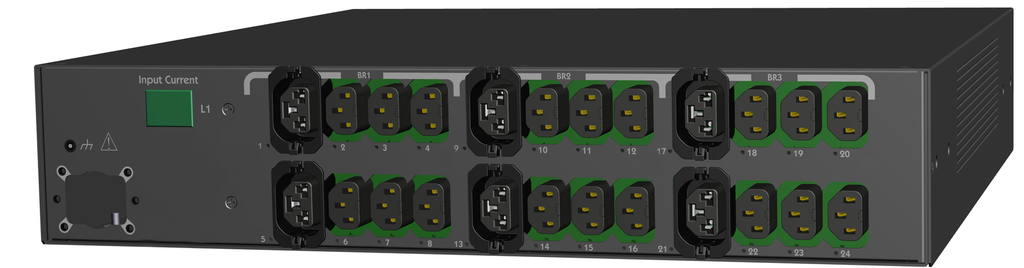

Featuring HDOT Cx hybrid outlets (C13/C19 compatible), the unit supports secure cable retention and versatile connectivity. IT personnel gain full visibility and management with network monitoring via HTTP(S), SNMP, SSH, Telnet, and more. With outlet control, administrators can cycle power to individual outlets for server reboots, while branch circuit monitoring and protection prevent overload risks.
The PRO2 “Primary” PDU supports star multi-linking, allowing up to three linked units to share one IP address for redundant or secondary feeds. Optional accessories such as environmental monitoring probes further extend capabilities. Engineered for uptime, the hot-swappable network card ensures uninterrupted access even during maintenance.
This robust PDU is designed for global data centers, providing flexible power distribution, proactive monitoring, and maximum operational reliability.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | PRO2 Switched POPS |
| Model / SKU | C2WG24SN-EPJN5D6 (Primary) |
| PDU Type | Switched with POPS® metering |
| Outlets | 24 total – (18) IEC 60320 C13, (6) HDOT Cx (C13/C19 hybrid) |
| Input Voltage | 230V |
| Input Current | 32A |
| Input Plug | IEC 230V/32A 2P+PE 6Hr |
| Power Capacity | 7.3 kW |

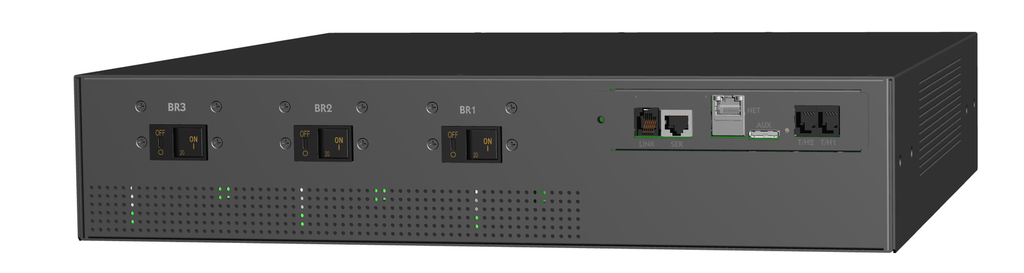

| Branch Circuit Protection | (3) x 2-pole, 20A UL 489 circuit breakers, ≤16A rating, 10 kAIC |
| Monitoring | PIPS® (inlet), POPS® (outlet), branch monitoring |
| Network Interfaces | HTTP/HTTPS, SNMPv2c/v3, SSH, Telnet, LDAP/LDAPS, RADIUS, TACACS+, FTP/SFTP |
| Environmental Support | 2x Temp/Humidity probe ports (optional probes) |
| Physical Dimensions | 3.5" H × 17.2" W × 17.5" D (89mm × 437mm × 445mm) |
| Operating Range | 32°F–122°F (0°C–50°C), 8–90% RH non-condensing |
| Certifications | EN/IEC 62368-1, CE, UKCA, RoHS, EMC (EN 55032/35, IEC 61000 series) |
| Warranty | 2-year limited (extended options available) |
