Description

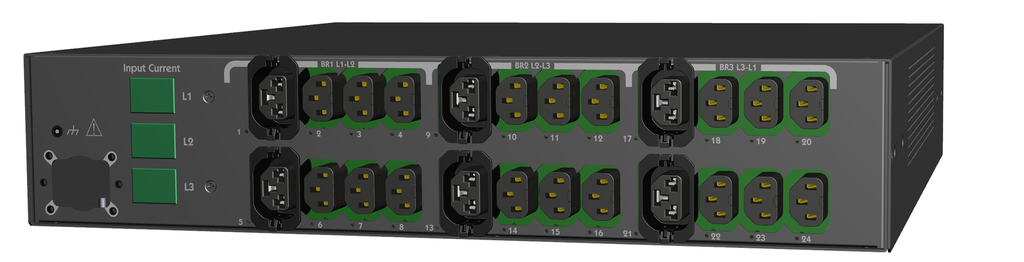

The Server Technology PRO2 Switched POPS PDU (C2WG24SN-YBLN5D6) delivers advanced outlet-level control and billing-grade accurate power monitoring for high-density data centers. Featuring 24 outlets (18 x IEC C13 and 6 x hybrid Cx), this rackmount PDU integrates PIPS® (Per Inlet Power Sensing) and POPS® (Per Outlet Power Sensing) to provide detailed measurement of voltage, current, active power, power factor, and energy at both inlet and outlet levels.
With built-in network monitoring via HTTP(S), SNMP, SSH, and Telnet, administrators can securely access real-time data and configure power policies remotely. Its hot-swappable network card, branch circuit protection, and high retention locking outlets ensure reliable uptime and maximum safety. The PRO2 Switched POPS “Primary” unit supports star multi-linking with up to three linked units, reducing IP address requirements while enhancing redundancy.
Designed for mission-critical IT environments, this PDU also supports temperature and humidity monitoring with optional probes, making it ideal for data centers that demand accuracy, flexibility, and resilience.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (a brand of Legrand) |
| Product Series | PRO2 Switched POPS |
| Model / SKU | C2WG24SN-YBLN5D6 |
| Outlets | 18 × IEC 60320 C13 (≤12A @208V L-L) 6 × Cx Hybrid C13/C19 (≤16A @208V) |
| Input Plug | NEMA L21-20P |
| Input Voltage | 208V AC, 50/60 Hz |
| Input Current | 20A (Rated 16A) |
| Power Capacity | 5.7 kW |
| PDU Type | Switched with POPS® outlet-level monitoring |
| Per-Inlet Sensing | PIPS® monitors A, V, W, VA, PF, Crest Factor, Energy |
| Per-Outlet Sensing | POPS® monitors A, V, W, VA, PF, Crest Factor, Energy |
| Branch Protection | UL 489 2-pole 20A breakers, 3 branches |
| Communications | Ethernet (10/100/1000), RS-232, SNMP v2/v3, HTTP/HTTPS, SSH, Telnet |
| Environmental | Operating: 32°F–122°F (0°C–50°C), 8–90% RH non-condensing |
| Dimensions | 3.5" H × 17.2" W × 17.5" D (89mm × 437mm × 445mm) |
| Power Draw | <10W unloaded |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Class A, CAN ICES-003 Class A |
| Warranty | 2-year limited (extended options available) |
| Optional Accessories | EMTH-2-10 probes, EMCU-1-1C module, PRO2 Link kits, cable retention devices |
