Description
The Server Technology® PRO2 C2WG24SN-YCLN5D6 Switched POPS PDU delivers advanced power monitoring, outlet control, and environmental sensing for modern data centers. Equipped with PIPS® (Per Inlet Power Sensing) and POPS® (Per Outlet Power Sensing), this PDU provides billing-grade accuracy for voltage, current, active and apparent power, power factor, crest factor, and energy usage—both per inlet and per outlet.

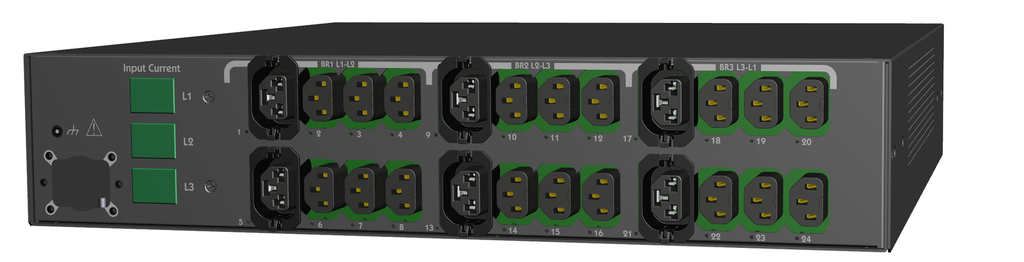

Featuring HDOT Cx outlets, the PDU supports both C14 and C20 plugs in a single, future-ready receptacle design. Integrated network monitoring with hot-swappable network cards ensures uninterrupted access, while Star Multi-Linking allows connection of up to four PDUs under one IP address. With outlet-level control, branch circuit protection, high-retention locking receptacles, and optional environmental probes, this unit is engineered to improve uptime, optimize capacity planning, and simplify remote management in high-density racks.
Ideal for mission-critical IT environments, the PRO2 C2WG24SN-YCLN5D6 provides enterprise-class monitoring, control, and flexibility, backed by a 2-year limited warranty from Server Technology.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line / Series | PRO2 Switched POPS |
| Model / SKU | C2WG24SN-YCLN5D6 |
| Product Type | Switched POPS PDU |
| Outlets | 18 × IEC 60320 C13, 6 × HDOT Cx (C13/C19 hybrid) |
| Input Voltage | 208V AC |
| Input Plug | NEMA L21-30P |
| Input Current (Rated) | 24A (30A max) |
| Power Capacity | 8.6 kW |
| Monitoring | PIPS® (per inlet), POPS® (per outlet), branch current monitoring |
| Control | Individual/group outlet switching, remote reboot |
| Network Interfaces | HTTP/HTTPS, SSH, Telnet, SNMPv2/v3, FTP/SFTP, Syslog, LDAP(S), TACACS+, RADIUS |
| Connectivity | 10/100/1000 Mbps Ethernet, RS-232 serial, Link port |
| Expansion | Supports up to 3 linked PDUs (Star Multi-Linking) |
| Environmental Sensors | Supports 2 × temperature/humidity probes (optional) |
| Dimensions (H × W × D) | 3.5" × 17.2" × 17.5" (89 × 437 × 445 mm) |
| Operating Environment | 32°F to 122°F (0°C to 50°C), 8–90% RH non-condensing |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Class A, CAN ICES-003 Class A |
| Warranty | 2-year limited parts & labor |
