Description

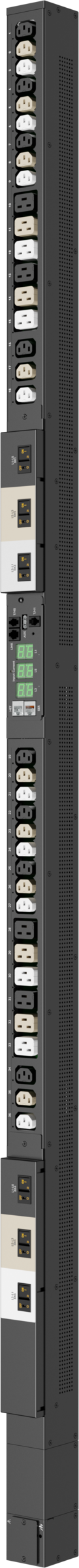

The Server Technology® PRO2 Switched POPS PDU (C2WG36CE-4PAE2M00) delivers advanced outlet-level power monitoring, control, and protection for demanding data center environments. Featuring Per Inlet Power Sensing (PIPS®) and Per Outlet Power Sensing (POPS®), this unit provides billing-grade accuracy for voltage, current, power, and energy at both the input and outlet levels.
With high-density outlet technology (HDOT®), 36 IEC C13 outlets are available in a compact vertical design. The unit supports network monitoring via HTTP(S), SNMP, SSH, Telnet, and other secure protocols, while hot-swap network cards and Star Multi-Linking ensure redundancy and simplified management across multiple circuits.
Ideal for high-density racks, the PRO2 Switched POPS PDU provides remote outlet control, branch circuit protection, environmental monitoring, and an extended operating temperature of up to 60 °C, ensuring reliable uptime and operational efficiency in enterprise and colocation data centers.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Series | PRO2 |
| Model / SKU | C2WG36CE-4PAE2M00 |
| PDU Type | Switched POPS (Per Outlet Power Sensing) |
| Input Voltage | 400V |
| Input Plug | IEC 60309 3P+N+PE 32A (6Hr) |
| Input Current | 32A |
| Input Power Capacity | 22 kW |
| Frequency | 50/60 Hz |
| Outlets | 36 × IEC 60320 C13 (≤10A @ 230V L-N each) |
| Branch Protection | Six 20A UL 489-rated circuit breakers |
| Dimensions (HxWxD) | 70.0 × 2.2 × 2.5 in (1778 × 56 × 64 mm) |
| Operating Temp. | 0°C to 60°C (32°F to 140°F) |
| Storage Temp. | -30°C to 80°C (-22°F to 176°F) |
| Environmental Monitoring | Supports 2x temperature/humidity probes (optional) |
| Communications | 10/100/1000 Mbps Ethernet (RJ-45), RS-232, SNMP v2c/v3, HTTPS, SSH, Telnet, Syslog, LDAP(S), TACACS+, RADIUS |
| Mounting | Vertical button mounts, flexible custom mounting |
| Certifications | EN IEC 62368-1, CE, UKCA, RoHS, EMC compliant |
| Warranty | 2-year limited (extended available) |
