Description

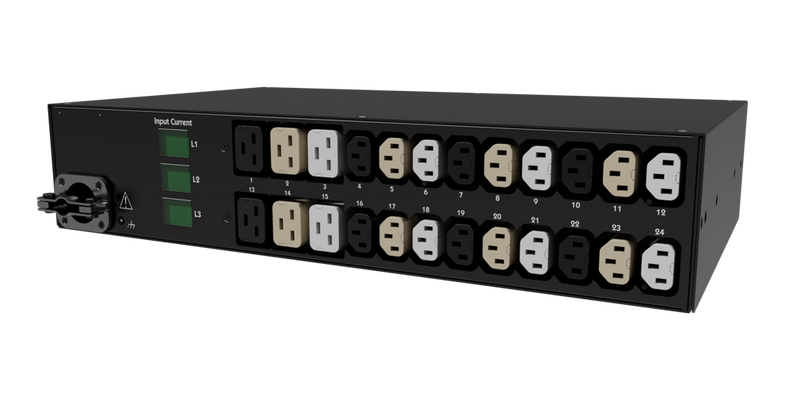

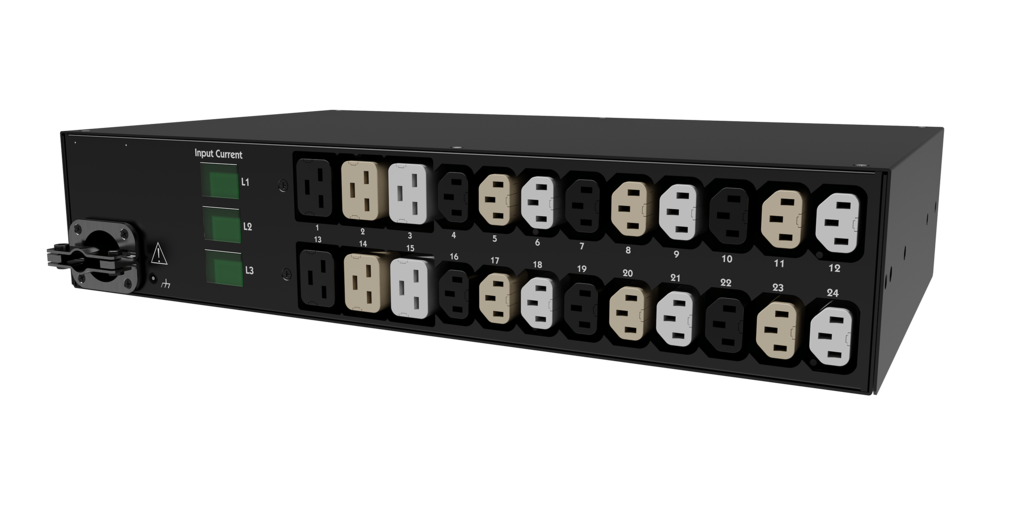

The Server Technology® PRO2 C2S24SP-YCLN5D6 Smart PDU delivers advanced power distribution and monitoring for high-density data center environments. Designed as a Primary unit, it supports up to three linked PRO2 expansion PDUs for redundant power feeds without the risks of daisy chaining.
Equipped with HDOT Cx outlets (supporting both C14 and C20 plugs), Per Inlet Power Sensing (PIPS®), and branch current monitoring, this PDU provides precise visibility into current, voltage, power, and energy usage. Its robust feature set includes hot-swappable network cards, environmental monitoring with optional probes, and alternating-phase outlets for improved load balancing and airflow.
With support for multiple protocols (HTTP(S), SSH, SNMP, Telnet, LDAP, RADIUS, and more), the PRO2 platform ensures secure and flexible integration into your management systems. Built for reliability, it meets UL and IEC safety standards and operates safely in demanding 60°C data center environments.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | PRO2 Smart PDU |
| Model / SKU | C2S24SP-YCLN5D6 (Primary) |
| Outlets | 18 × IEC 60320 C13, 6 × Cx (C13/C19 hybrid) |
| Input Plug | NEMA L21-30P |
| Input Voltage | 208V, 50/60 Hz |
| Input Current | 30A (Rated 24A) |
| Power Capacity | 8.6 kW |
| Monitoring | PIPS® per-inlet power sensing, branch current monitoring, auto-flip LED current display |
| Network Access | Ethernet (10/100/1000 Mbps), RS-232 serial, HTTP/HTTPS, SNMPv2c/v3, SSH, Telnet, LDAP/LDAPS, TACACS+, RADIUS |
| Expansion | Supports up to 3 Link PDUs (C2L24SP-YCLN5D6) |
| Environmental Monitoring | Two external temperature/humidity probes (optional) |
| Branch Protection | UL 489 compliant 2-pole 20A breakers (≤16A per branch) |
| Operating Temp. | 32°F to 140°F (0°C to 60°C) |
| Storage Temp. | -22°F to 176°F (-30°C to 80°C) |
| Physical Dimensions | 3.5 in (H) × 17.2 in (W) × 10.0 in (D) |
| Certifications | UL 62368-1, CSA C22.2, FCC Part 15 Class A, CAN ICES-003 Class A |
| Warranty | 2-year limited parts & labor (extended options available) |
