Description

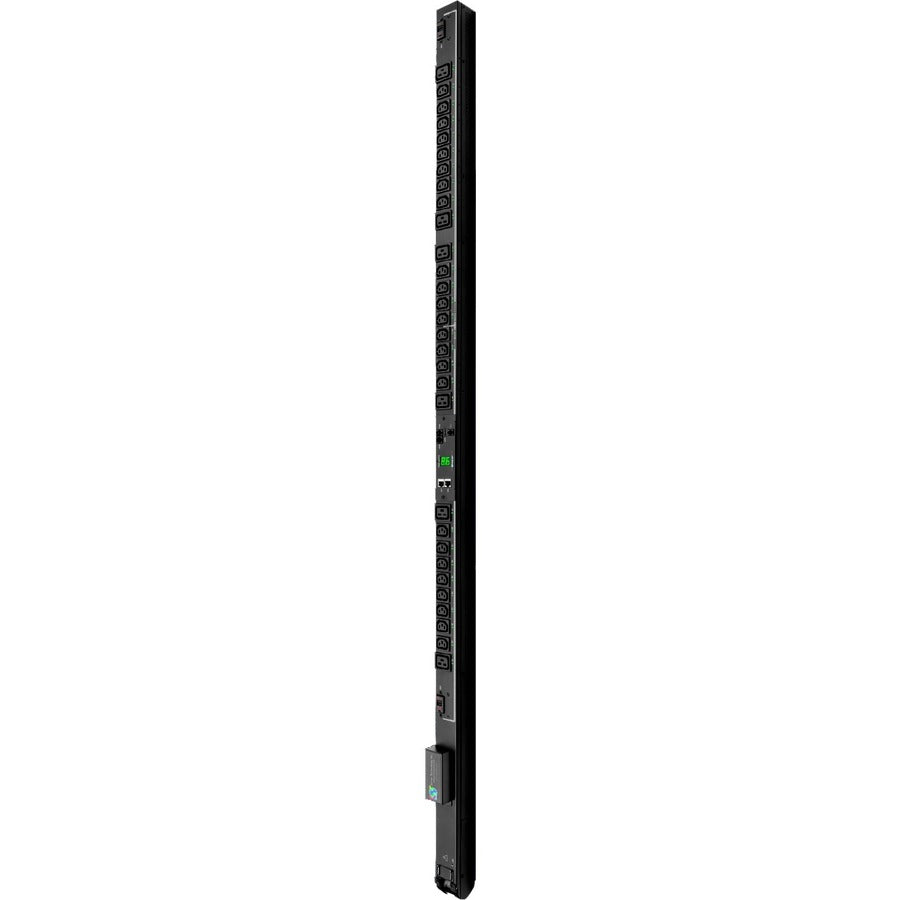

The Server Technology® PRO2 Switched PDU (STV-4501C) is engineered for advanced power distribution and monitoring in high-density data centers. This 30A, 208V Primary unit provides control of outlet power, enabling IT staff to remotely reboot servers, shut down unused outlets, and balance loads across three phases.
With PIPS® (Per Inlet Power Sensing) technology, the PDU delivers billing-grade accuracy for current, voltage, power, crest factor, power factor, and energy measurement. It supports SNMP-based alerts, temperature/humidity monitoring, and offers a hot-swap network card to maintain uptime during service.
Designed for reliability, it operates safely in demanding 60°C environments, includes branch circuit protection with UL-rated breakers, and features high-retention locking outlets compatible with P-Lock cords. The unit also supports Star Multi-Linking, allowing up to four circuits under a single IP address for streamlined management.
| Category | Specification |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | PRO2 Switched PDU |
| Model / SKU | STV-4501C (Primary) |
| Input Voltage | 208V, 50/60Hz |
| Input Plug | NEMA L6-30P |
| Input Current (Rated) | 24A (30A max) |
| Power Capacity | 5.0 kW |
| Outlets | (24) IEC C13 (≤12A @208V, 15A peak) (6) IEC C19 (≤16A @208V, 20A peak) |
| Branch Circuit Protection | (2) UL 489 20A, 2-pole magnetic-hydraulic breakers |
| Monitoring Technology | PIPS® (Per Inlet Power Sensing), Branch Current Monitoring |
| Control | Switched outlet-level control (on/off, reboot) |
| Communications | 10/100/1000 Mbps Ethernet, RS-232, SNMPv2c/v3, HTTP/HTTPS, SSH, Telnet, LDAP/LDAPS, TACACS+, RADIUS |
| Environmental Monitoring | Supports (2) external temperature/humidity probes (optional) |
| Dimensions | 69.0" H x 2.2" W x 2.3" D (1753 x 56 x 59 mm) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Certifications | UL 62368-1, CSA C22.2, FCC Part 15 Class A, CAN ICES-003 Class A |
| Warranty | 2-Year Limited Parts & Labor (extended options available) |
| Optional Accessories | EMTH-2-10 probes, EMCU-1-1C monitor, PRO2 Link kits, StartUp Stick™, cable retention devices |
