Description

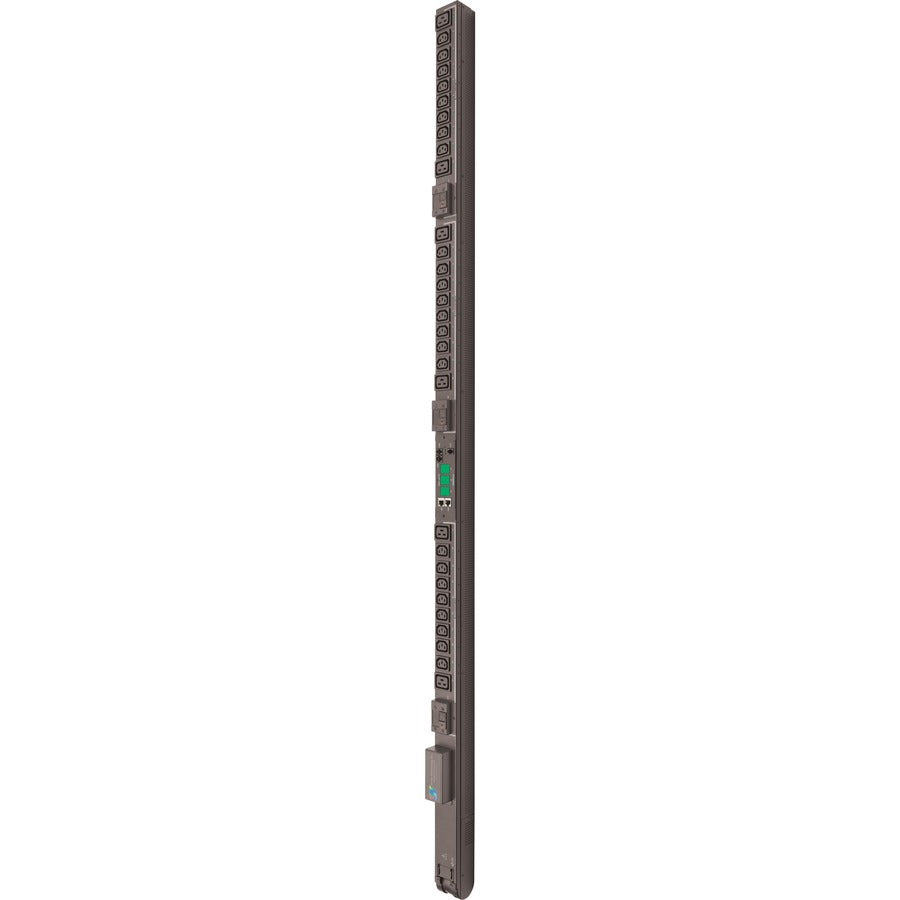

The Server Technology® PRO2 Switched POPS STV-6501C PDU (Primary) is a high-density rack power distribution solution designed for enterprise and data center environments. Featuring advanced PIPS® (Per Inlet Power Sensing) and POPS® (Per Outlet Power Sensing) technology, it provides billing-grade accurate measurement of voltage, current, power, energy, and more—both at the input and outlet level.
With integrated outlet control, IT administrators can remotely cycle power to individual or grouped outlets for rebooting servers or managing unused receptacles. The STV-6501C supports hot-swappable network cards, star multi-linking to connect up to four PDUs with a single IP address, and comprehensive monitoring via SNMP, CLI, and web GUI.
Engineered for demanding data center conditions, it operates safely up to 60 °C, includes high-retention locking outlets, flexible mounting options, and color-coded PDU options. The rotatable Power Pivot™ input cord ensures compatibility with varied rack setups, while robust branch circuit protection ensures compliance with UL and IEC standards.
This model serves as a Primary PDU and can be linked to up to three additional “Link” units for extended, redundant power distribution without daisy-chain risk.
| Category | Specification |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | PRO2 Switched POPS |
| Model / SKU | STV-6501C (Primary) |
| Outlets | 30 total (24 × IEC C13, 6 × IEC C19) |
| Input Voltage | 208 V, 50/60 Hz |
| Input Plug | NEMA L6-30P |
| Input Current | 30A (Rated 24A) |
| Power Capacity | 5.0 kW |
| Outlet Rating | C13 ≤ 12A @ 208V (15A peak); C19 ≤ 16A @ 208V (20A peak) |
| Branch Protection | 2 × UL 489 circuit breakers, 20A trip (2-pole, 5 kAIC) |
| Dimensions (HxWxD) | 69.0 × 2.2 × 2.25 in (1753 × 56 × 58 mm) |
| Environment | Operating: 0–60°C, 8–90% RH non-condensing |
| Communications | 10/100/1000 Mbps Ethernet, RS-232, SNMPv2c/v3, SSH, Telnet, HTTP/HTTPS, LDAP/LDAPS, TACACS+, RADIUS |
| Monitoring | PIPS® (per inlet), POPS® (per outlet), branch monitoring, T/H probe support |
| Certifications | UL 62368-1, CSA 62368-1, FCC Part 15 Class A, CAN ICES-003 Class A |
| Warranty | 2-year limited parts & labor (extended support available) |
| Optional Accessories | Temp/humidity probes, environmental monitor, linking kits, mounting brackets |
