Description

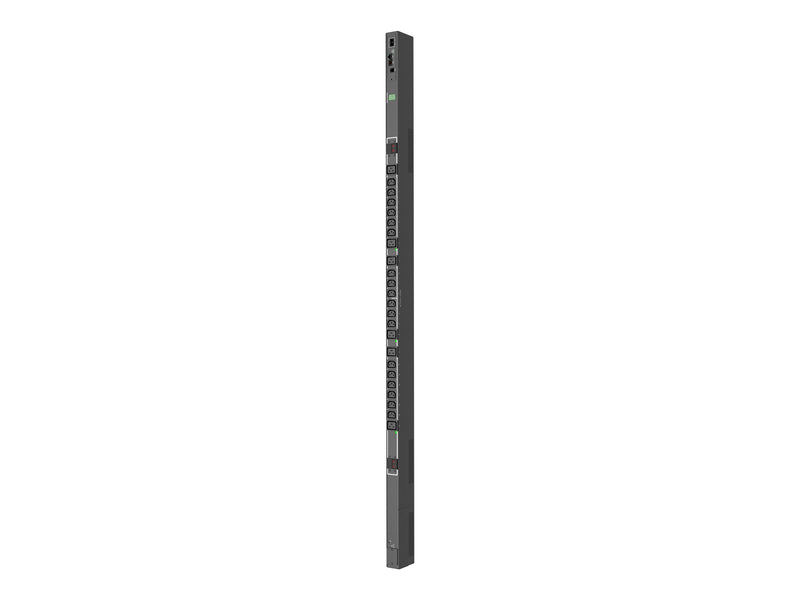

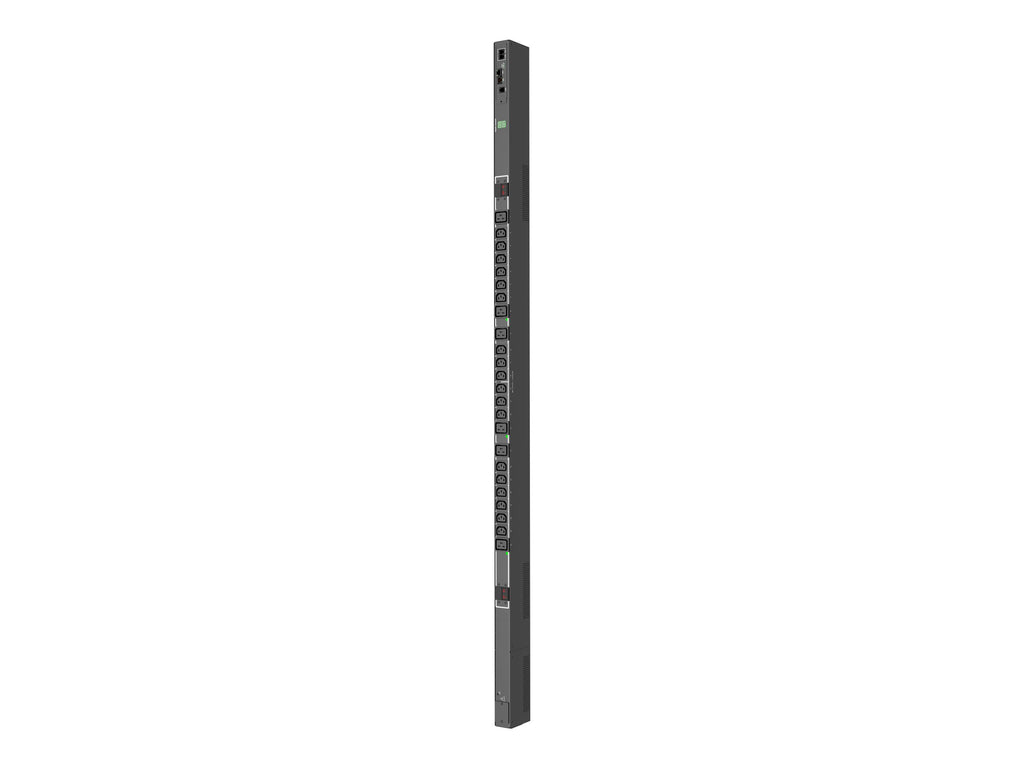

The Server Technology® PRO2 Switched POPS STV-6541C is a high-density, intelligent rack power distribution unit (PDU) designed for mission-critical data center environments. Featuring Per Inlet Power Sensing (PIPS®) and Per Outlet Power Sensing (POPS®), this PDU delivers billing-grade accuracy for current, voltage, power, and energy metrics at both the inlet and outlet levels. IT personnel gain secure network monitoring and outlet-level control via Web, CLI, or SNMP interfaces.
Built for flexibility and reliability, the STV-6541C includes 24 outlets (18 x C13, 6 x C19), NEMA L6-30P input, and 5.0 kW capacity. It supports branch circuit protection, high-retention locking outlets, environmental monitoring with optional probes, and hot-swappable network cards for uninterrupted access. With support for up to 60°C operating environments and multiple mounting options, the PRO2 Switched POPS PDU ensures safe, efficient, and scalable power management in high-density server racks.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | PRO2 Switched POPS PDU |
| Model / SKU | STV-6541C (Primary) |
| Input Voltage | 208V, 50/60 Hz |
| Input Plug | NEMA L6-30P |
| Input Current (Rated) | 24A (30A max) |
| Input Power Capacity | 5.0 kW |
| Outlets | (18) IEC C13 ≤12A @208V (15A peak) (6) IEC C19 ≤16A @208V (20A peak) |
| Branch Circuit Protection | UL 489 Compliant Circuit Breakers (2-pole, 20A trip) |
| Monitoring Technologies | PIPS® (Inlet), POPS® (Outlet), Branch Current Monitoring |
| Outlet Control | Individual or group outlet switching/reboot |
| Communications | 10/100/1000 Mbps Ethernet, RS-232, Web GUI, CLI (HTTP/HTTPS, SSH, Telnet, SNMP v2c/v3, LDAP/LDAPS, RADIUS, TACACS+) |
| Environmental Monitoring | Supports 2 external temp/humidity probes (optional) |
| Operating Temp | 0°C to 60°C (32°F to 140°F) |
| Dimensions | 64.0" x 1.75" x 3.5" (1626 x 45 x 89 mm) |
| Certifications | UL 62368-1, CSA C22.2, FCC Part 15 Class A, CAN ICES-003 Class A |
| Warranty | 2-Year Limited (Extended Support Available) |
