Description

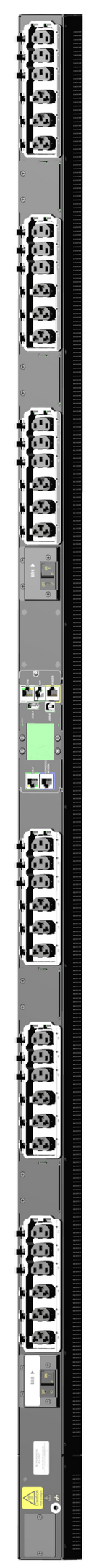

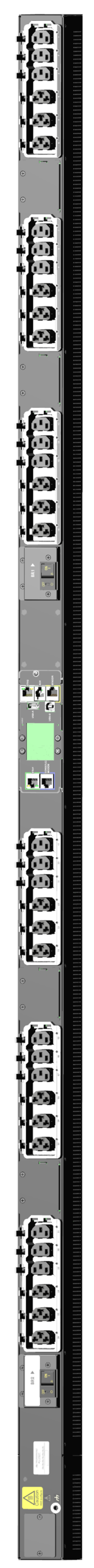

The Server Technology PRO3X C3W36RL-EPJE2MT4 Switched PDU delivers cutting-edge power distribution and management for modern data centers. Built on the advanced Xerus Technology Platform, it features RamLock HDOT outlets with self-locking mechanisms that prevent accidental disconnections. Offering both C13 and Cx hybrid outlets, it provides future-ready flexibility for IT infrastructure.
This PDU supports outlet-level control, per-inlet power sensing (PIPS®), branch current monitoring, and environmental monitoring with plug-and-play sensors. Its network interface module enables secure access through HTTP(S), SSH, Telnet, SNMP, and more. With features like a multi-color LCD, hot-swappable controller, and multi-unit linking & cascading, the PRO3X ensures dependable power distribution, visibility, and control in high-density environments.
Ideal for enterprise and hyperscale facilities, it is engineered for reliable performance in demanding 60°C data center environments.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line / Series | PRO3X Switched PDU |
| Model / SKU | C3W36RL-EPJE2MT4 |
| Outlets | 18 × IEC 60320 C13 (≤10A @ 230V L-N), 18 × Cx hybrid C13/C19 (≤16A @ 230V L-N) |
| Input Voltage | 230 V, 50/60 Hz |
| Input Plug | IEC 230V/32A 2P+PE 6Hr |
| Input Current | 32A (rated), 7.3 kW power capacity |
| Outlet Control | Switched (individual & group reboot/off) |
| Monitoring | PIPS® per-inlet power sensing, branch current monitoring, environmental monitoring with up to 12 DX2 SmartSensors |
| Network Interface | Dual Ethernet (10/100/1000 Mbps), optional Wi-Fi, RS-232, USB, Telnet, SNMP v2c/v3, HTTPS, LDAP, RADIUS |
| Display | Multi-color LCD |
| Protection | UL 489 magnetic-hydraulic circuit breakers (2-pole, 20A) |
| Dimensions (HxWxD) | 70.0 in × 2.2 in × 2.5 in (1778 mm × 56 mm × 64 mm) |
| Environmental Rating | Operating: 0–60°C (32–140°F), Storage: -30–80°C (-22–176°F) |
| Certifications | EN/IEC 62368-1, CE, UKCA, RoHS, EMC compliant |
| Warranty | 2-year limited (extendable) |
