Description

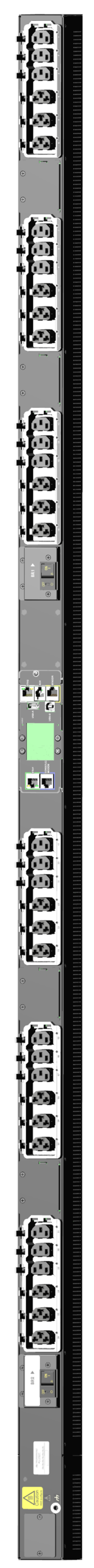

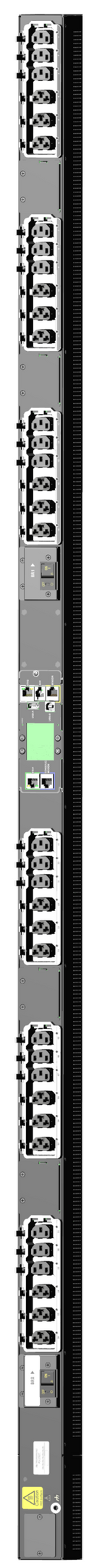

The Server Technology PRO3X Switched PDU (C3W36RL-2CJE2MT4) delivers cutting-edge power distribution and control for demanding data center environments. Built on the Xerus™ Technology Platform, this unit features RamLock™ HDOT outlets, ensuring secure cord connections and maximum flexibility with hybrid C13/C19-compatible Cx outlets.
Engineered for reliability and scalability, the PRO3X supports per-inlet power sensing (PIPS®), branch current monitoring, and outlet-level control. It also offers network-based monitoring via HTTP(S), SNMP, SSH, and more, with secure access through dual Ethernet ports and optional Wi-Fi.
Hot-swappable controllers, multi-unit linking for up to 16 PDUs, and compatibility with Legrand SmartSensors provide enhanced environmental awareness. With a high-temperature rating of 60°C, robust branch circuit protection, and flexible mounting options, this PDU is built to meet the needs of modern data centers.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line / Series | PRO3X / Switched PDU |
| Model / SKU | C3W36RL-2CJE2MT4 |
| Form Factor | Vertical (0U), 70.0" x 2.2" x 2.5" |
| Input Voltage | 208V AC |
| Frequency | 50/60 Hz |
| Input Plug | NEMA L6-30P |
| Input Current | 30A (24A rated) |
| Power Capacity | 5 kW |
| Outlets | 18 × IEC 60320 C13, 18 × Cx (C13/C19 hybrid) |
| Outlet Control | Switched (individual or group) |
| Branch Protection | UL 489 2-pole, 20A breakers |
| Monitoring | PIPS® per-inlet power sensing, branch current monitoring |
| Environmental Monitoring | Supports up to 12 DX2 SmartSensors (temp, humidity, water, airflow, etc.) |
| Network Interfaces | Dual Ethernet (10/100/1000), RS-232, USB-A/B, optional Wi-Fi |
| Protocols | HTTP/HTTPS, SSH, Telnet, SNMP v2c/v3, Syslog, LDAP(S), RADIUS |
| Display | Multi-color LCD |
| Controller | Hot-swappable |
| Operating Temp. | 0°C to 60°C (32°F to 140°F) |
| Certifications | UL 62368-1, CSA C22.2, FCC Part 15, IEC/EN compliance |
| Warranty | 2-year limited (extended options available) |
