Description

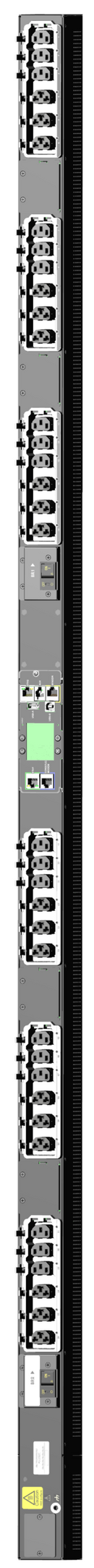

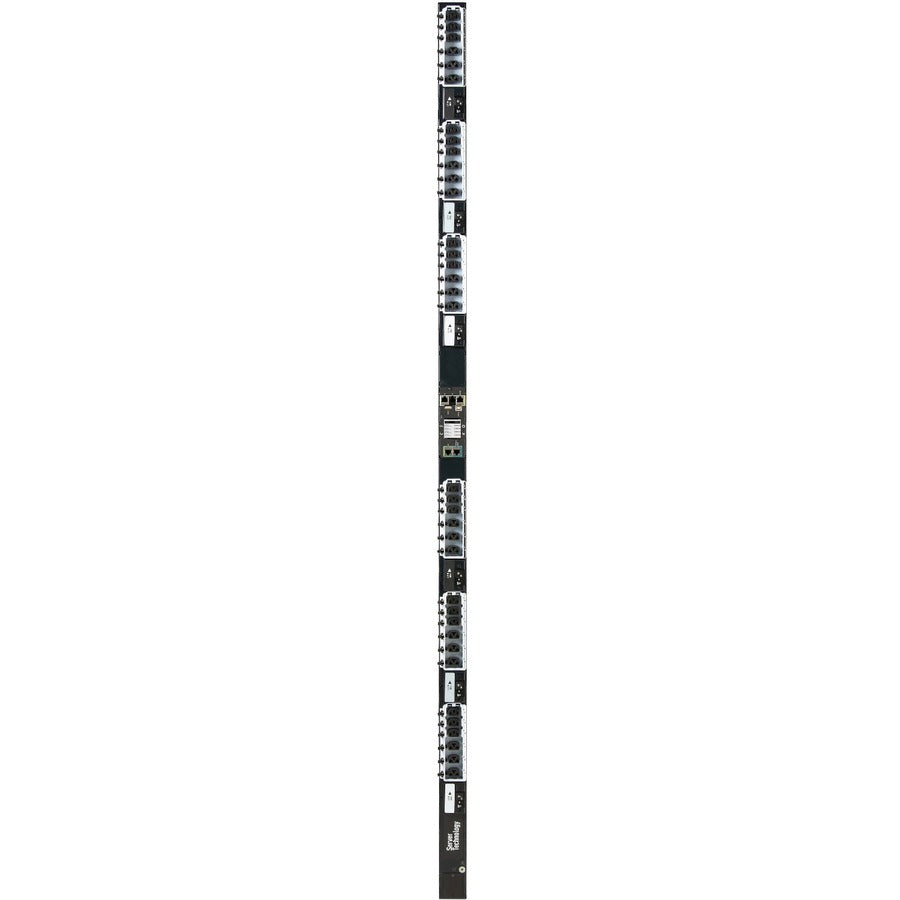

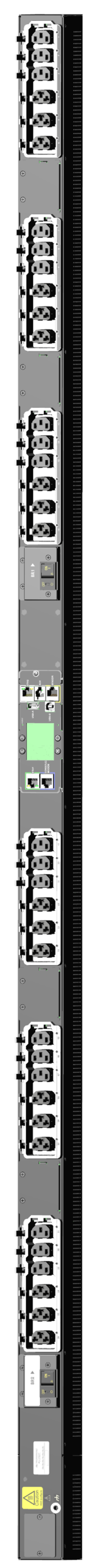

The Server Technology® PRO3X Switched PDU (C3W36RL-0AJE2MT4) delivers next-generation power distribution with advanced outlet control, branch current monitoring, and integrated environmental sensing support. Equipped with RamLock self-locking outlets, this PDU prevents accidental disconnects and ensures secure connections for mission-critical operations. Its HDOT Cx hybrid outlets support both C13 and C19 power cords, offering unmatched flexibility for mixed IT environments.
With its state-of-the-art Raritan Xerus Technology network interface, the PRO3X provides seamless monitoring via HTTP(S), SSH, Telnet, SNMP, and more. The unit features a color LCD matrix display, per-inlet power sensing with billing-grade accuracy, and branch circuit protection. Built for demanding data centers, this PDU operates safely in environments up to 60°C, supports daisy-chaining of up to 16 units, and offers hot-swap controller replacement for maximum uptime.
Ideal for enterprise and colocation facilities, the PRO3X C3W36RL ensures efficiency, reliability, and scalability for modern high-density racks.
| Category | Details |
|---|---|
| Manufacturer | Server Technology, Inc. |
| Product Series | PRO3X |
| Model / SKU | C3W36RL-0AJE2MT4 |
| Form Factor | Vertical, 70.0in x 2.2in x 2.5in (1778mm x 56mm x 64mm) |
| Outlets | (18) IEC C13, (18) HDOT Cx (hybrid C13/C19) |
| Outlet Locking | RamLock high-retention locking outlets, P-Lock compatible |
| Input Plug | IEC C20 inlet (100–240V, 16A rated, 50/60Hz) |
| Power Capacity | Global: up to 3.6kW, North America: up to 3.8kW |
| Branch Protection | UL489 compliant 2-pole, 20A trip circuit breakers (≤16A per branch) |
| Monitoring & Control | Per-inlet power sensing (PIPS), branch current monitoring, outlet switching |
| Network Interface | Raritan Xerus Technology – HTTP/HTTPS, SSH, Telnet, SNMP v2/v3, Syslog, LDAP, RADIUS, TACACS+, IPv4/IPv6 |
| Display | Color matrix LCD with per-phase current display |
| Environmental Support | Up to 12 Raritan DX2 SmartSensors (temp, humidity, airflow, pressure, water, door contact) |
| Operating Temp | 32°F to 140°F (0°C to 60°C), 8–90% RH non-condensing |
| Storage Temp | -40°F to 185°F (-40°C to 85°C) |
| Certifications | UL 60950-1, cTUVus, CE, FCC Class A, RoHS, WEEE |
| Communications Ports | Dual Ethernet (10/100/1000 Mbps), USB-A, USB-B, RJ45 Console/Modem, Aux, Sensor Port |
| Power Accuracy | Current, Voltage, Power, Energy ±1% billing-grade accuracy |
| Hot-Swap Controller | Field-replaceable while energized |
| Mounting Options | Button mounts and optional custom brackets |
| Color Options | Blue, Red, Green, White, Yellow, Black (circuit identification) |
| Warranty | 2-year limited parts & labor (extendable) |
