Description

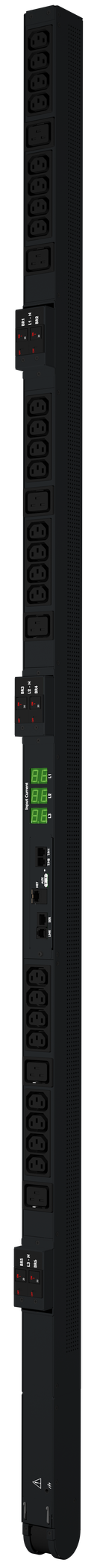

The Server Technology® PRO1 Smart STV-3534J Primary PDU delivers intelligent power distribution with advanced monitoring for modern data centers. Designed with integral PIPS® (Per Inlet Power Sensing) technology, it provides billing-grade accuracy for current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy.
This 3-phase PDU supports 30 outlets (24 × C13, 6 × C19), backed by UL-rated branch circuit protection and high-retention locking outlets for maximum reliability. Network monitoring is built-in via HTTP(S), SNMP, SSH, Telnet, and LDAP(S), with dual support for IPv4/IPv6.
Additional features include temperature/humidity monitoring, hot-swap network card support, and a 90° Power Pivot™ rotatable power cord for flexible installation. Tested to operate reliably in up to 60 °C environments, the STV-3534J is ideal for high-density IT cabinets requiring secure, accurate, and redundant power distribution.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Series | PRO1 Smart |
| Model / SKU | STV-3534J (Primary) |
| PDU Type | Smart PDU (Monitored) |
| Input Voltage | 400 V AC, 50/60 Hz |
| Input Plug | IEC 60309 3P+N+PE 16A, 6Hr |
| Input Current | 16 A (rated) |
| Input Power Capacity | 11.0 kW |
| Outlets | 24 × IEC 60320 C13 (≤10A @230V), 6 × IEC 60320 C19 (≤16A @230V) |
| Branch Protection | 6 × UL 489 circuit breakers, ≤16A, 10 kAIC |
| Network Interfaces | 10/100/1000 Mbps Ethernet (RJ-45), RS-232, Link port |
| Protocols Supported | HTTP/HTTPS, SSHv2, Telnet, SNMPv2/v3, LDAP(S), TACACS+, RADIUS, FTP/SFTP |
| Environmental | Operating: 0°C–60°C, Storage: -30°C–80°C |
| Physical Dimensions | 70.1 in × 1.75 in × 2.25 in (1781 × 45 × 58 mm) |
| Mounting Options | Button mounts, optional brackets |
| Certifications | EN/IEC 62368-1, CE, UKCA, RoHS, EMC compliant |
| Warranty | 2-year limited (extendable) |
