Description

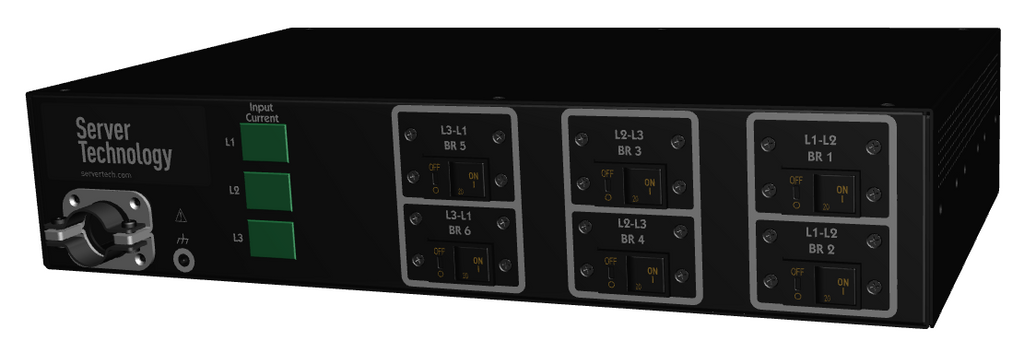

The Server Technology PRO1 Smart PDU (Primary) delivers reliable, high-density power distribution with advanced monitoring and network management features. Designed for demanding data center environments, it provides local LED input current monitoring and integrates PIPS® technology for billing-grade accuracy of voltage, current, power, and energy at the input.
With star multi-linking capability, the Primary unit can connect up to three Link PDUs, offering extended network access without the risks of daisy-chaining. Built-in support for SNMP, web, and CLI interfaces ensures seamless integration with your data center’s power management systems.
Featuring high-retention locking outlets, branch circuit protection, hot-swap network cards, and temperature/humidity monitoring (with optional probes), this PDU ensures safe, efficient, and scalable rack-level power distribution.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | PRO1 Smart PDU |
| Model / SKU | C1S15HN-DQJN5BC3-013 (Primary) |
| Input Voltage | 208V, 50/60Hz |
| Input Plug | IEC 60309 3P+G 9Hr (208V Delta, 60A) |
| Input Current | 60A (Rated 48A) |
| Power Capacity | 17.3kW |

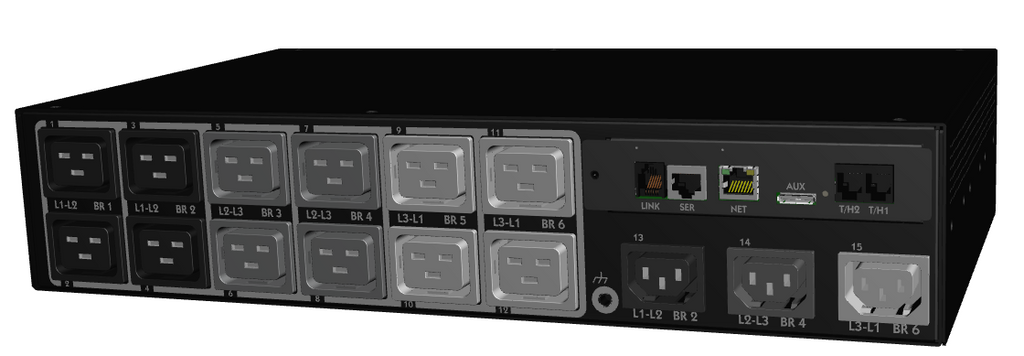

| Outlets | 3 × IEC 60320 C13 (≤12A @208V, 15A peak)12 × IEC 60320 C19 (≤16A @208V, 20A peak) |
| Branch Protection | UL 489/CSA/IEC compliant, 2-pole 20A trip circuit breakers (6 branch circuits) |
| Dimensions (HxWxD) | 3.5" × 17.2" × 10.1" (89mm × 437mm × 257mm) |
| Environmental | Operating: 0–50°C, 8–90% RH, ≤6,500ftStorage: -30–80°C, ≤50,000ft |
| Communications | 10/100/1000 Mbps Ethernet, RS-232, SNMP v2c/v3, HTTPS/SSH/Telnet, LDAP/LDAPS, TACACS+, RADIUS |
| Monitoring | PIPS® per inlet monitoring (current, voltage, power, PF, energy) |
| LED Display | Auto-flip per-phase current monitoring LEDs |
| Optional Accessories | Temperature/humidity probes, environmental monitor (EMCU-1-1C), water sensor, cable retention devices |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Part 15 Class A, CAN ICES-003 Class A |
| Warranty | 2-year limited parts & labor (extendable) |
