Description

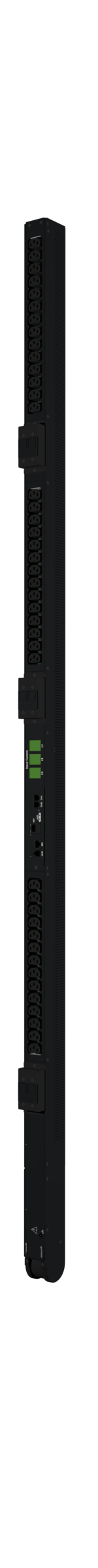

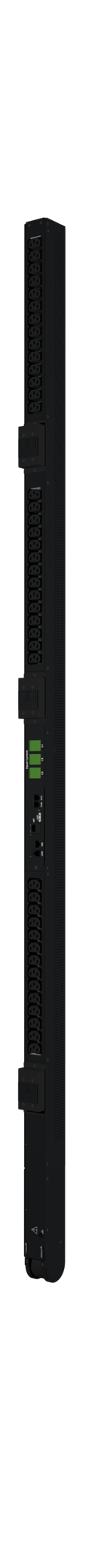

The Server Technology® PRO1 Smart PDU (C1S39CS-5CPD2T444) is a high-density, intelligent rack power distribution unit designed for modern data centers. Equipped with PIPS® (Per Inlet Power Sensing) technology, it provides billing-grade accurate measurements of current, voltage, power, power factor, crest factor, and energy at the input level.
Engineered for efficiency, it supports network monitoring through multiple secure protocols (HTTP/HTTPS, SNMP, SSH, Telnet, and more) and ensures uptime with a hot-swappable network card backed by link redundancy. Featuring HDOT® (High Density Outlet Technology), it delivers the industry’s highest outlet density with IEC C13 and C19 outlets, ensuring reliable connections in high-density environments.
With a 60°C high-temperature rating, branch circuit protection, and a 90-degree rotatable Power Pivot™ cord, this PDU is ideal for enterprise IT facilities that demand safety, reliability, and scalability.
| Category | Specification |
|---|---|
| Manufacturer | Server Technology, Inc (Legrand) |
| Product Line | PRO1 Smart PDU |
| Model | C1S39CS-5CPD2T444 (Primary) |
| Outlets | 39 total (27 × IEC C13, 12 × IEC C19) |
| Input Voltage | 415V |
| Input Plug | NEMA L22-30P |
| Input Current | 30A |
| Power Capacity | 17.3 kW |
| Branch Circuit Protection | UL 489 1-pole 20A breakers (6 branches, ≤16A each) |
| Network & Security | HTTP/HTTPS, SSH, Telnet, SNMPv2/v3, LDAP(S), TACACS+, RADIUS, FTP/SFTP |
| Communications Ports | 10/100/1000 Mbps Ethernet (RJ-45), RS-232, 2 × T/H probe inputs, Link port |
| Environmental Monitoring | Supports two external 10’ (3m) temperature/humidity probes |
| Display | Auto-flip LED per-phase current monitoring |
| Dimensions | 70.1 × 1.75 × 2.25 in (1781 × 45 × 58 mm) |
| Operating Environment | 0°C to 60°C, 8–90% RH non-condensing |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Part 15 Class A, CAN ICES-003 Class A |
| Warranty | 2-year limited parts & labor (extended options available) |
