Description

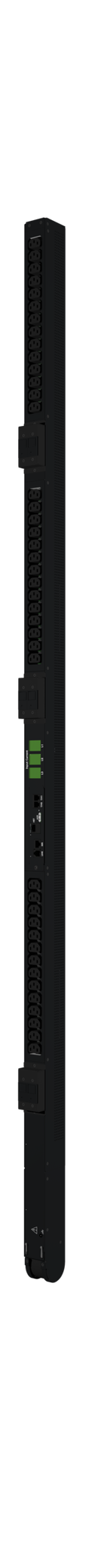

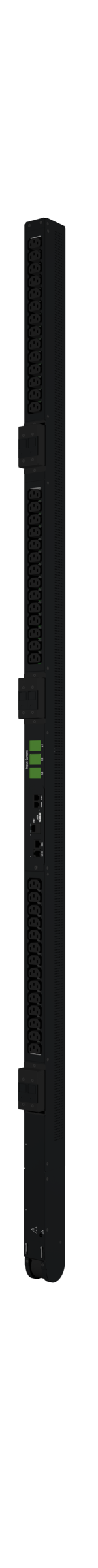

The Server Technology PRO1 C1S39TS-5CPD2T444 Smart PDU delivers advanced power monitoring, flexible connectivity, and high-density outlet support for modern data centers. Designed with HDOT Cx outlets, it accommodates both C14 and C20 plugs, ensuring compatibility and reliability. Featuring PIPS® (Per Inlet Power Sensing), it provides billing-grade accurate measurements of current, voltage, active and apparent power, power factor, crest factor, and accumulated energy at the input.
This PDU supports network monitoring via HTTP(S), SSH, Telnet, SNMP, LDAP(S), and more. With its hot-swap network card, power redundancy is maintained without downtime. Built for high-density environments, the Auto-Flip LED current display simplifies load balancing, while temperature and humidity monitoring (via optional probes) ensures operational safety.
With a 30A input capacity and a total of 39 outlets (27 x C13, 12 x Cx), the C1S39TS-5CPD2T444 is ideal for enterprise and colocation facilities that demand reliability, scalability, and compliance with UL and IEC safety standards.
| Category | Details |
|---|---|
| Manufacturer | Server Technology, Inc. |
| Product Line | PRO1 |
| Model / Part Number | C1S39TS-5CPD2T444 |
| Product Type | Smart PDU (Primary) |
| PDU Type | Switched & Monitored |
| Input Voltage | 415V AC |
| Input Current | 30A |
| Input Plug | NEMA L22-30P |
| Input Power Capacity | 17.3 kW |
| Frequency | 50/60 Hz |
| Outlets | 27 × IEC 60320 C13 (≤12A @240V L-N) 12 × Cx Hybrid (≤16A @240V L-N) |
| Branch Circuit Protection | Six (6) UL 489 rated magnetic-hydraulic circuit breakers, 20A trip |
| Network Monitoring | HTTP(S), SSH, Telnet, SNMPv2/v3, Syslog, LDAP(S), RADIUS, TACACS+, (S)FTP, SMTP |
| Interfaces | 10/100/1000 Mbps Ethernet (RJ-45), RS-232 Serial, Link Port, Sensor Ports |
| Environmental | Operating: 0°C to 60°C (32°F to 140°F), 8–90% RH non-condensing Storage: -30°C to 80°C (-22°F to 176°F) |
| Dimensions (HxWxD) | 70.1 in × 1.75 in × 2.25 in (1781 mm × 45 mm × 58 mm) |
| Mounting Options | Standard button mounts, custom bracket support |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Part 15 Class A, CAN ICES-003 Class A |
| Warranty | 2-Year Limited (Extended options available) |
