Description

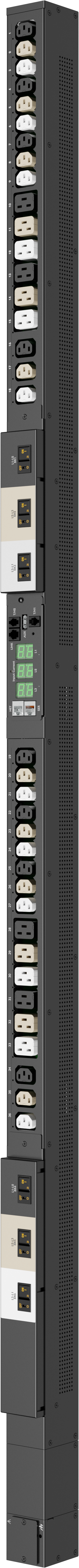

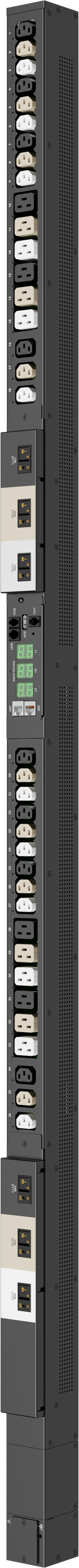

The Server Technology® PRO2 Smart PDU C2S36CE-YQME2M66 (Primary) is engineered to deliver high-density, reliable, and intelligent power distribution for mission-critical data center environments. With 36 outlets (24 x IEC C13, 12 x IEC C19) and a 17.3 kW capacity, it provides local LED input current monitoring and Per Inlet Power Sensing (PIPS®) for accurate energy management.
The PRO2 architecture enables seamless multi-linking of up to four power circuits using a single IP address, reducing networking complexity. Featuring branch current monitoring, alternating-phase outlets for load balancing, hot-swap network cards, and high-density outlet technology (HDOT®), it ensures maximum efficiency and uptime.
Tested for safe operation in high-temperature environments up to 60°C, this PDU supports SNMP-based alerts, environmental monitoring, and integration with industry-standard management systems. Ideal for high-density racks, it delivers precision, scalability, and reliability for modern data centers.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | PRO2 Smart PDU |
| Model / SKU | C2S36CE-YQME2M66 (Primary) |
| Input Voltage | 208V, 50/60 Hz |
| Input Plug | 208V Wye 60A IEC 60309 3P+N+G (9Hr) |
| Input Current | 60A (Rated 48A) |
| Power Capacity | 17.3 kW |
| Outlets | 24 × IEC 60320 C13 (≤12A @208V), 12 × IEC 60320 C19 (≤16A @208V) |
| Branch Protection | 6 × UL 489 2-pole 20A circuit breakers |
| Monitoring | PIPS® per-inlet sensing, branch current monitoring, SNMP alerts |
| Network Interfaces | HTTP/HTTPS, SSH, Telnet, SNMP v2/v3, LDAP(S), RADIUS, TACACS+, FTP/SFTP |
| Environmental Range | 0°C to 60°C (Operating), -30°C to 80°C (Storage) |
| Physical Dimensions | 70.0 in (H) × 2.2 in (W) × 2.5 in (D) |
| Mounting Options | Button mounts, optional custom brackets |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Part 15 Class A, CAN ICES-003 Class A |
| Warranty | 2-year limited parts & labor (extended options available) |
