Description

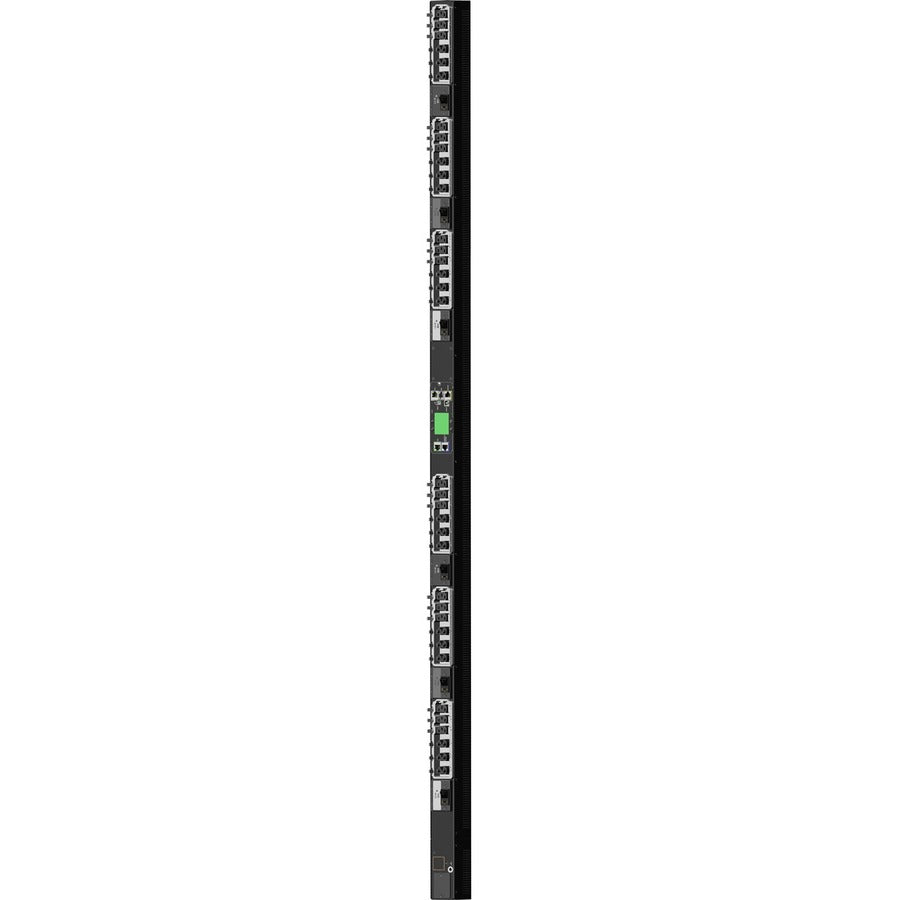

The Server Technology PRO3X C3S36RL-GPJE2MT2 Smart PDU delivers cutting-edge power distribution with advanced monitoring, environmental sensing, and secure networking. Featuring RAMlock HDOT outlets with hybrid Cx receptacles (supporting both C13 and C19), this PDU ensures maximum flexibility and secure cord connections. Integrated Raritan Xerus Technology enables state-of-the-art management with multi-protocol access, while PIPS® per-inlet power sensing and branch current monitoring provide billing-grade accuracy and proactive circuit protection.
Ideal for high-density data centers, this PDU offers a hot-swappable controller, multi-master linking of up to 16 PDUs, and support for up to 12 environmental sensors. With a color matrix LCD, color-coded chassis options, and a high 60°C operating temperature rating, it ensures reliable performance in demanding environments.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | PRO3X Smart PDU |
| Model / SKU | C3S36RL-GPJE2MT2 |
| Outlets | 18 × IEC 60320/C13; 18 × Cx (C13/C19 hybrid) |
| Outlet Ratings | C13: ≤12A @208V (15A peak), ≤10A @230V; Cx: ≤16A @208V (20A peak), ≤16A @230V |
| Input Plug | IEC 60309 3P+N+G 6Hr, 230/400V 32A & 240/415V Wye 30A |
| Input Voltage | 220/380V–240/415V |
| Input Current | Global: 32A / North America: 30A (Rated: Global 32A / NA 24A) |
| Input Power Capacity | Global: 22.0 kW / North America: 17.3 kW |
| Branch Circuit Protection | Six (6) UL489 compliant 20A trip breakers |
| Power Monitoring | PIPS® per-inlet power sensing (voltage, current, power, PF, energy); branch current monitoring |
| Environmental Monitoring | Supports up to 12 Raritan DX2 sensors (temp, humidity, airflow, water, door sensors, etc.) |
| Communications | Dual Gigabit Ethernet, USB, RS-232, SNMP v2/v3, HTTPS/SSH/Telnet, LDAP/LDAPS, RADIUS, TACACS+ |
| Display | Color Matrix LCD with per-phase current readout |
| Controller | Hot-swappable, field-replaceable |
| Dimensions | 70.0 × 2.2 × 2.5 in (1778 × 56 × 64 mm) |
| Operating Temp | 32°F to 140°F (0°C to 60°C) |
| Certifications | UL 60950-1, CE, RoHS, FCC Class A, TUV, WEEE compliant |
| Warranty | 2-year limited parts & labor (extended support available) |
