Description

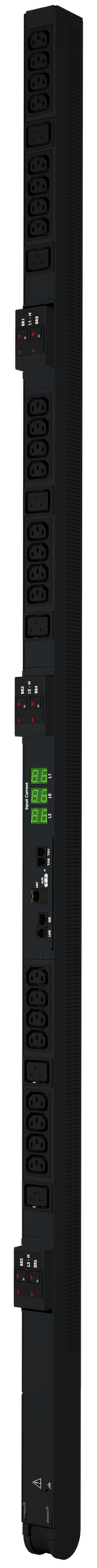

The Server Technology® PRO1 STV-3534Z Smart PDU delivers advanced rack-level power distribution with industry-leading monitoring and reliability. Featuring Per Inlet Power Sensing (PIPS®) technology, it provides billing-grade accuracy for voltage, current, power, and energy measurements. Local LED input current monitoring ensures safe installation, while network connectivity options (HTTP(S), SSH, Telnet, SNMP, FTP/SFTP, Syslog, and more) enable remote visibility and control.
Built for high-density data centers, the STV-3534Z supports temperature and humidity monitoring, branch circuit protection, and high-retention locking outlets for secure power delivery. With a 17.3 kW capacity, flexible mounting options, and a rotatable Power Pivot™ input cord, this PDU is optimized for performance, scalability, and safety. The STV-3534Z (Primary) can be connected to SEV-3534Z Link units for expanded network access and redundancy, making it ideal for mission-critical IT environments.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Series | PRO1 Smart PDU |
| Model / SKU | STV-3534Z (Primary), SEV-3534Z (Link) |
| PDU Type | Smart / Monitored |
| Input Voltage | 415V, 50/60Hz |
| Input Plug | NEMA L22-30P |
| Input Current | 30A (24A rated) |
| Power Capacity | 17.3 kW |
| Outlets | 24 × IEC 60320 C13 (≤12A @240V L-N, 15A Peak)6 × IEC 60320 C19 (≤16A @240V L-N, 20A Peak) |
| Branch Circuit Protection | 6 × 1-pole 20A trip circuit breakers (UL 489 / CSA / IEC compliant) |
| Dimensions | 70.1 in H × 1.75 in W × 2.25 in D (1781 × 45 × 58 mm) |
| Environment | Operating: 0–60°C, 8–90% RH non-condensingStorage: -30–80°C |
| Communications | 10/100/1000 Mbps Ethernet (RJ-45), RS-232 Serial, Link portProtocols: HTTP/HTTPS, SSH, Telnet, SNMPv2/v3, LDAP/LDAPS, TACACS+, RADIUS, FTP/SFTP |
| Monitoring | Per Inlet Power Sensing (PIPS®), LED & GUI measurement with ±1% accuracy |
| Features | Hot-swap network card, star multi-linking, high-retention outlets, Power Pivot™ cord, flexible mounting, color-coded options |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Part 15 Class A, CAN ICES-003 Class A |
| Warranty | 2-Year Limited (Extended options available) |
| Optional Accessories | Temperature/Humidity probes, Environmental Monitor (EMCU), Startup Stick™, cable retention devices |
