Description

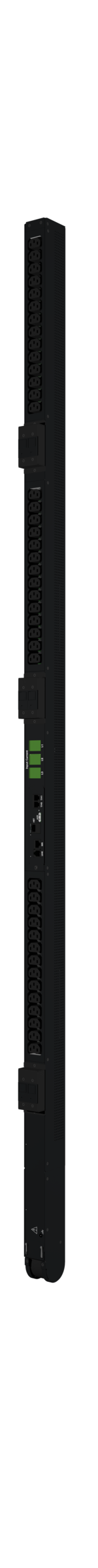

The Server Technology® PRO1 Smart PDU (C1S42CS-4PPD2T000) delivers reliable, high-density power distribution with advanced monitoring features tailored for modern data centers. Designed with PIPS® (Per Inlet Power Sensing) technology, this PDU provides billing-grade accurate measurements for current, voltage, power, energy, and more.
Featuring 42 x IEC C13 outlets, the PRO1 Smart PDU supports three-phase 400V input with a 22kW power capacity, ensuring efficient load distribution across high-density racks. Integrated network monitoring via HTTP(S), SSH, SNMP, and more enables secure remote access, while hot-swap network cards ensure uptime and resiliency.
With temperature/humidity monitoring, branch circuit protection, and HDOT® (High Density Outlet Technology), the C1S42CS-4PPD2T000 offers safe and flexible power management in demanding environments. Built for 60°C operation, this unit ensures performance under extreme conditions.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Series | PRO1 |
| Model / SKU | C1S42CS-4PPD2T000 (Primary) |
| Outlets | 42 × IEC 60320/C13 (≤10A @230V L-N) |
| Input Voltage | 400V (230/400V Wye) |
| Input Plug | IEC 60309 3P+N+PE 6Hr |
| Input Current | 32A |
| Power Capacity | 22.0 kW |
| Phase | Three Phase |
| Branch Circuit Protection | 6 × 1-pole 20A circuit breakers (≤16A, 10 kAIC) |
| Monitoring Technology | PIPS® Per Inlet Power Sensing |
| Communications | Ethernet 10/100/1000 (RJ-45), RS-232, Web GUI, CLI, SNMPv2/v3, SSH, Telnet |
| Environmental Monitoring | Supports 2 × external temperature/humidity probes |
| Operating Environment | 32°F to 140°F (0°C to 60°C), 8–90% RH |
| Dimensions (HxWxD) | 70.1 × 1.75 × 2.25 in (1781 × 45 × 58 mm) |
| Certifications | EN/IEC 62368-1, CE, UKCA, RoHS, EMC standards |
| Mounting Options | Standard button mounts, customizable brackets |
| Additional Features | HDOT® outlet density, Power Pivot™ rotatable cord, Auto-flip current display |
| Warranty | 2-year limited (extended support available) |
