Description

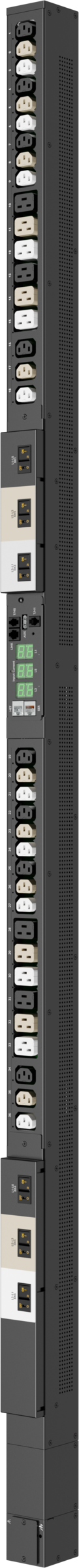

The Server Technology® PRO2 Smart PDU (C2S36CE-4PAE2M66 Primary) delivers advanced power monitoring, branch protection, and high-density outlet capacity for mission-critical data center environments. Featuring PIPS® (Per Inlet Power Sensing) technology, it provides billing-grade accuracy for current, voltage, power, and energy at the inlet. With network-connected access via HTTP(S), SSH, SNMP, Telnet, and CLI, IT administrators gain real-time visibility and control over power distribution.
Designed for maximum reliability, this PDU supports branch circuit monitoring, temperature/humidity sensors, and hot-swappable network cards for uninterrupted connectivity. Its alternating-phase outlets, HDOT (High Density Outlet Technology), and 60°C high-temperature rating ensure simplified load balancing, improved airflow, and safe operation in demanding conditions.
Whether deployed as a standalone Primary PDU or linked with up to three PRO2 Link PDUs, the C2S36CE-4PAE2M66 is engineered for scalability, efficiency, and resilience in modern data centers.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand Group) |
| Series / Model | PRO2 / C2S36CE-4PAE2M66 (Primary) |
| Outlets | 36 Total – (24) IEC C13, (12) IEC C19 |
| Input Voltage | 400V (230/400V Wye) |
| Input Plug | IEC 60309 3P+N+PE 6Hr, 32A |
| Input Current | 32A |
| Power Capacity | 22 kW |
| Branch Circuit Protection | UL 489 / IEC 60947-2 Compliant Circuit Breakers |
| Monitoring | PIPS® per-inlet power sensing, branch current monitoring |
| Network Interfaces | 10/100/1000 Mbps Ethernet (RJ-45), RS-232, Web GUI, CLI |
| Protocols Supported | HTTP/HTTPS, SNMPv2/v3, SSH, Telnet, LDAP(S), RADIUS, TACACS+ |
| Environmental Sensors | Supports up to 2 external temperature/humidity probes |
| Physical Dimensions | 70.0" H x 2.2" W x 2.5" D (1778mm x 56mm x 64mm) |
| Operating Temp. | 0°C to 60°C (32°F to 140°F) |
| Storage Temp. | -30°C to 80°C (-22°F to 176°F) |
| Certifications | EN IEC 62368-1, CE, UKCA, RoHS, EMC compliant |
| Warranty | Standard 2-Year Limited Parts & Labor Warranty |
| Optional Accessories | EMTH-2-10 T/H probe, EMCU-1-1C environmental monitor, cable retention kits |
