Description

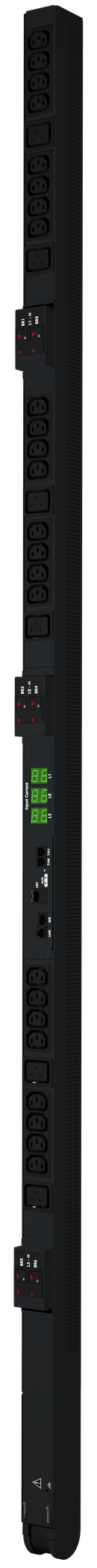

The Server Technology® PRO1 STV-3534K Smart PDU delivers intelligent power distribution with advanced monitoring capabilities, designed for mission-critical data center environments. Featuring PIPS® Per Inlet Power Sensing technology, it provides billing-grade measurement of current, voltage, power, crest factor, power factor, and energy usage.
This Primary Smart PDU offers networked monitoring via HTTP(S), SNMP, SSH, and other secure protocols, with the ability to connect to up to three Link PDUs for redundant feeds—without the risks of daisy-chaining. High-retention locking outlets ensure secure connections, while hot-swappable network cards maintain uptime.
With 22kW power capacity, 30 IEC outlets (24 x C13, 6 x C19), branch circuit protection, and environmental monitoring (temperature/humidity), the STV-3534K is optimized for high-density racks and reliable three-phase load balancing.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand Group) |
| Product Line | PRO1 Smart PDU |
| Model / SKU | STV-3534K (Primary) |
| Product Type | Intelligent / Monitored PDU |
| Form Factor | Vertical, 70.1 in x 1.75 in x 2.25 in (1781 x 45 x 58 mm) |
| Input Voltage | 400V (50/60 Hz) |
| Input Plug | IEC 60309 3P+N+PE 32A 6Hr (230/400V Wye) |
| Input Current | 32A |
| Power Capacity | 22.0 kW |
| Outlets | 24 × IEC C13 (≤10A @230V L-N), 6 × IEC C19 (≤16A @230V L-N) |
| Branch Circuit Protection | UL 489 magnetic-hydraulic breakers (6 × 20A, 1-pole, 10kAIC) |
| Monitoring Technology | PIPS® Per Inlet Power Sensing |
| Communications | HTTP/HTTPS, SNMPv2c/v3, SSHv2, Telnet, LDAP/LDAPS, TACACS+, RADIUS, Syslog, RS-232 |
| Network Interface | 10/100/1000 Mbps Ethernet (RJ-45) |
| Environmental Monitoring | Supports 2 × external temperature/humidity probes (SNMP/email alerts) |
| Operating Temp. | 0°C to 60°C (32°F to 140°F), up to 2km elevation |
| Storage Temp. | -30°C to 80°C (-22°F to 176°F), up to 15km elevation |
| Power Draw (Unloaded) | < 10W |
| Certifications | CE, UKCA, RoHS, EN IEC 62368-1, CISPR 32/35, IEC 61000-3 series |
| Warranty | 2-Year Limited Warranty (extended options available) |
