Description

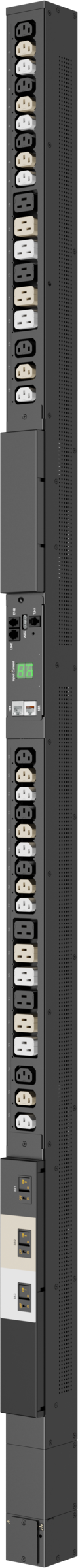

The Server Technology® PRO2 Smart C2S36TE-2CAF2M99 PDU delivers advanced power distribution and monitoring for modern data centers. Featuring 36 outlets (18x IEC C13 and 18x HDOT Cx hybrid outlets), this intelligent PDU provides local LED input current monitoring and Per Inlet Power Sensing (PIPS®) for accurate measurement of voltage, current, active/apparent power, crest factor, and energy usage.
Designed for resilience and scalability, the unit supports Star Multi-Linking of up to four circuits using a single IP address, and its hot-swappable network card ensures continuous connectivity even during maintenance or power events. Environmental monitoring is enabled via optional probes for temperature and humidity, with real-time alerts via SNMP and email.
With its branch circuit protection, UL/IEC 62368-1 safety certifications, and operation rated for high-temperature environments (up to 60 °C), this PDU ensures secure, reliable, and efficient power delivery in high-density IT infrastructures. Flexible mounting options and color-coded chassis choices simplify deployment and circuit identification.
Ideal for enterprises, colocation facilities, and high-performance computing environments requiring precision monitoring, energy efficiency, and network-integrated power control.
| Category | Specification |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Series | PRO2 Smart |
| Model / SKU | C2S36TE-2CAF2M99 (Primary) |
| Outlets | 36 total: 18 × IEC 60320 C13 (≤12A @208V, 15A peak) + 18 × HDOT Cx hybrid outlets (≤16A @208V, 20A peak) |
| Input Voltage | 208V, 50/60 Hz |
| Input Plug | NEMA L6-30P |
| Input Current | 30A (rated 24A) |
| Power Capacity | 5 kW |
| Monitoring | PIPS® (Per Inlet Power Sensing), Branch Current Monitoring |
| Networking Protocols | HTTP/HTTPS, SSH, Telnet, SNMP v2/v3, Syslog, LDAP(S), RS-232, FTP/SFTP, SMTP |
| Network Card | Hot-swappable with backup link capability |
| Environmental Monitoring | Supports 2 × external T/H probes (10 ft), SNMP/email alerts |
| Branch Circuit Protection | UL 489 2-pole, 20A breakers (3 branches) |
| Operating Temperature | 32 °F to 140 °F (0 °C to 60 °C) |
| Storage Temperature | -22 °F to 176 °F (-30 °C to 80 °C) |
| Dimensions | 70.0" H × 2.2" W × 2.5" D (1778 × 56 × 64 mm) |
| Mounting Options | Standard button mounts + custom brackets |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Part 15 Class A, CAN ICES-003 Class A |
| Warranty | Standard 2-year limited (extended options available) |
