Description

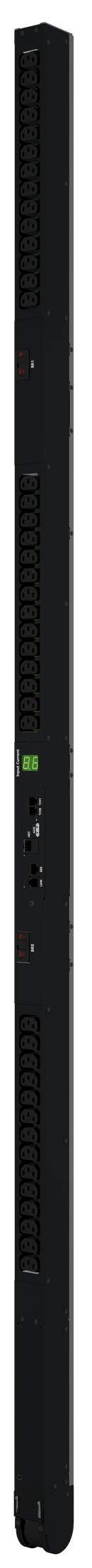

The Server Technology® PRO2 Smart PDU C2S39CS-2CBA2S444 (Primary) delivers advanced power distribution and monitoring for high-density data center environments. Designed with PIPS® (Per Inlet Power Sensing) technology, it provides billing-grade accuracy for measuring current, voltage, power, and energy. This PDU ensures per-branch current monitoring, temperature/humidity monitoring, and network-based alerts to safeguard against overloads and downtime.
With support for HTTP(S), SNMP, SSH, Telnet, and LDAP(S), IT administrators gain comprehensive remote visibility and management. Its HDOT® (High Density Outlet Technology) maximizes rack space with 39 outlets (27 x C13, 12 x C19), complemented by high-retention locking outlets for secure connections. Featuring a rotatable Power Pivot™ cord, hot-swap network card, and operation in environments up to 65°C, this PDU offers unmatched flexibility, resilience, and efficiency for mission-critical data centers.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand Group) |
| Product Series | PRO2 Smart PDU |
| Model / SKU | C2S39CS-2CBA2S444 (Primary) |
| PDU Type | Monitored / Smart |
| Input Voltage | 208V |
| Input Plug | NEMA L6-30P |
| Input Current | 30A (24A rated) |
| Input Power Capacity | 5.0 kW |
| Frequency | 50/60 Hz |
| Outlets | 27 × IEC C13 (≤12A @208V), 12 × IEC C19 (≤16A @208V) |
| Branch Protection | UL 489, CSA C22.2 No. 5, IEC/EN 60947-2, 20A trip circuit breakers |
| Dimensions (HxWxD) | 69.0 × 1.75 × 2.25 in (1753 × 45 × 58 mm) |
| Environment (Operating) | 0°C–65°C; 8–90% RH non-condensing; 6,500 ft elevation |
| Environment (Storage) | -30°C–80°C; 8–90% RH non-condensing; 50,000 ft elevation |
| Network Interfaces | 10/100/1000 Mbps Ethernet (RJ-45), RS-232 (RJ-45), SNMPv2c/v3, SSH, HTTPS, Telnet |
| Monitoring Features | PIPS® inlet sensing, branch current monitoring, temperature/humidity monitoring |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Part 15 Class A, CAN ICES-003 Class A |
| Special Features | HDOT®, Power Pivot™, Hot-Swap Network Card, Auto-Flip Current Display, High Retention Outlets |
| Warranty | 2-Year Limited Parts & Labor (Extended options available) |
