Description

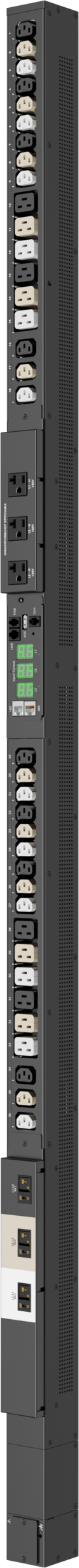

The Server Technology® PRO2 Smart PDU C2S36CE-YCMFAM66 (Primary) delivers reliable, high-density power distribution with intelligent monitoring and management for modern data centers. Featuring PIPS® (Per Inlet Power Sensing), this unit provides billing-grade measurement of current, voltage, active power, apparent power, crest factor, and energy usage per inlet. IT staff can monitor these metrics locally via LED display or remotely using a comprehensive set of access methods, including HTTP(S), SSH, SNMP, LDAP(S), and more.
Designed for scalability, the PRO2 Smart Primary PDU supports linking up to three PRO2 Link PDUs through a star multi-link configuration, ensuring redundant network access without the risks of daisy-chaining. Its HDOT (High Density Outlet Technology) with alternating-phase outlets simplifies load balancing, reduces cord clutter, and improves airflow.
With support for temperature and humidity probes, hot-swap network cards, and branch circuit monitoring, this PDU enhances uptime and power management in demanding IT environments. Certified for operation in high-temperature (up to 60°C) conditions, the C2S36CE-YCMFAM66 ensures efficiency, safety, and long-term performance for mission-critical applications.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand Group) |
| Product Series | PRO2 Smart PDU |
| Model / SKU | C2S36CE-YCMFAM66 (Primary) |
| Form Factor | Vertical (0U), 70.0in x 2.2in x 2.5in (1778mm x 56mm x 64mm) |
| Input Voltage | 208V, 50/60 Hz |
| Input Plug | NEMA L21-30P |
| Input Current | 30A (Rated 24A) |
| Power Capacity | 8.6 kW |
| Outlets | 24 × IEC C13 (≤12A @208V L-L, 15A Peak)12 × IEC C19 (≤16A @208V L-L, 20A Peak)3 × NEMA 5-20R Utility (≤16A @120V L-N, 20A Peak) |
| Branch Circuit Protection | 2-pole, 20A trip breakers (UL 489 compliant), 3 branch circuits |
| Monitoring | PIPS® per inlet power sensing, branch current monitoring, SNMP/email alerts |
| Networking & Security | 10/100/1000 Mbps Ethernet, RS-232 serial, Web GUI, CLI, SNMPv2/v3, IPv4/IPv6, LDAP/LDAPS, TACACS+, RADIUS |
| Environmental | Operating: 0°C–60°C, 8–90% RH |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Part 15 Class A, CAN ICES-003 Class A |
| Warranty | 2-year limited (extendable) |
| Optional Accessories | Temperature/Humidity probes, EMCU Environmental Monitor, PRO2 Link kits, StartUp Stick™, cable retention devices |
| Special Features | HDOT outlets, hot-swap network card, star multi-linking, color-coded options, alternating-phase outlets |
