Description

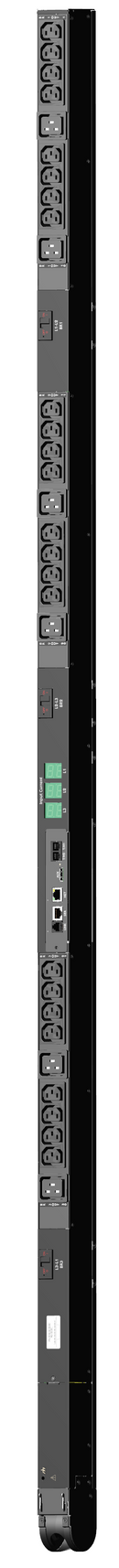

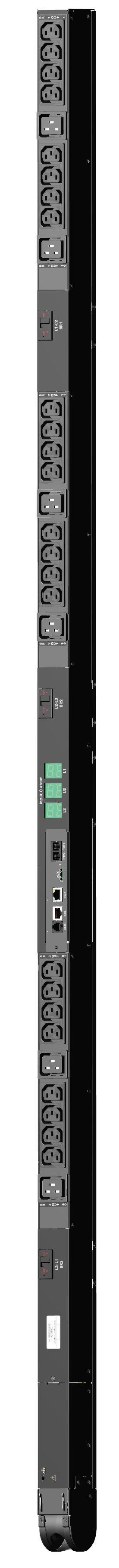

The Server Technology PRO2 Smart PDU STV-3533E (Primary) is engineered to deliver reliable and intelligent power distribution for high-density data center environments. Featuring Per Inlet Power Sensing (PIPS®) for billing-grade accuracy, it measures current, voltage, power, energy, crest factor, and power factor. Designed for enterprise reliability, it supports branch circuit protection with UL 489 rated breakers and offers local LED input current monitoring to ensure safe per-phase load balancing.
With network access via HTTP(S), SSH, Telnet, SNMP, Syslog, LDAP(S), and RS-232, the STV-3533E provides advanced monitoring and management. Additional highlights include temperature and humidity monitoring, auto-flip current display, and high-retention locking outlets compatible with P-Lock power cords.
The PDU is rated for 8.6 kW power capacity, equipped with 30 outlets (24 x IEC C13, 6 x IEC C19), and designed to operate safely in environments up to 60 °C. Its 90° rotatable Power Pivot™ cord and flexible mounting options allow seamless deployment across facilities.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Series | PRO2 Smart PDU |
| Model / SKU | STV-3533E (Primary) |
| PDU Type | Switched Smart PDU |
| Input Voltage | 208V |
| Input Plug | NEMA L15-30P |
| Input Current (Rated) | 24A |
| Input Current (Max) | 30A |
| Input Power Capacity | 8.6 kW |
| Frequency | 50/60 Hz |
| Outlets | 30 Total: 24 × IEC 60320 C13, 6 × IEC 60320 C19 |
| Outlet Rating | C13 ≤ 12A @ 208V (15A Peak), C19 ≤ 16A @ 208V (20A Peak) |
| Branch Circuit Protection | UL 489 compliant, 2-pole 20A breakers, 3 branches |
| Dimensions (H × W × D) | 70.1 × 1.75 × 2.25 in (1781 × 45 × 58 mm) |
| Operating Environment | 0 – 60 °C (32 – 140 °F), 8–90% RH non-condensing |
| Storage Environment | -30 – 80 °C (-22 – 176 °F), 8–90% RH |
| Network & Management | 10/100/1000 Mbps Ethernet, RS-232; Web GUI & CLI: HTTP/HTTPS, SSH, SNMP v2/v3, Telnet, LDAP(S), TACACS+, RADIUS |
| Measurement Accuracy | Current ±1%, Voltage ±1%, Energy ±1% |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Part 15 Class A, CAN ICES-003 Class A |
| Warranty | 2-year limited warranty (extendable) |
