Description

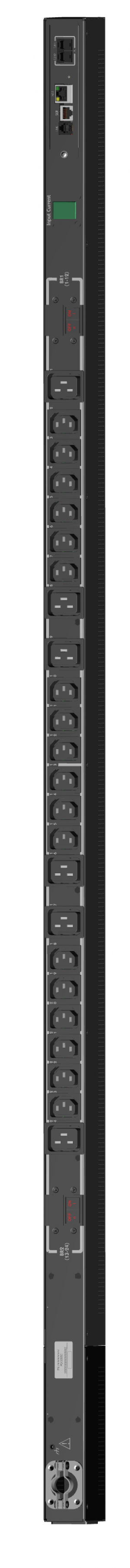

The Server Technology® PRO2 Smart POPS STV-5541C PDU delivers advanced power monitoring and control for modern data centers. Featuring PIPS® (Per Inlet Power Sensing) and POPS® (Per Outlet Power Sensing), it provides billing-grade accuracy of current, voltage, power, and energy at both the inlet and outlet levels. This intelligent PDU supports network monitoring, hot-swap network cards, branch circuit protection, and environmental monitoring via optional temperature/humidity probes.
Designed for high-density environments, it supports auto-flip LED displays, flexible mounting, and color-coded options for easy circuit identification. With the ability to link expansion units, the STV-5541C ensures reliable, efficient, and scalable rack power distribution with redundancy and centralized IP access.
| Category | Specification |
|---|---|
| Manufacturer | Server Technology, Inc. |
| Product Line | PRO2 Smart POPS |
| Model | STV-5541C (Primary) |
| Product Type | Switched/Monitored PDU |
| Input Voltage | 208 V |
| Frequency | 50/60 Hz |
| Input Plug/Connector | NEMA L6-30P |
| Input Current (Max Rated) | 30 A (24 A rated) |
| Power Capacity | 5.0 kW |
| Outlets | 18 × IEC 60320 C13 (≤12A @208V) 6 × IEC 60320 C19 (≤16A @208V) |
| Branch Circuit Protection | UL 489 2-pole, 20A breakers (2 branches, ≤16A) |
| Monitoring | PIPS® (Per Inlet Power Sensing), POPS® (Per Outlet Power Sensing), Branch Current Monitoring |
| Network & Security | HTTP/HTTPS, SSH, Telnet, SNMP v2c/v3, Syslog, LDAP(S), RADIUS, TACACS+, (S)FTP |
| Communications | Gigabit Ethernet (RJ-45), RS-232, Link Port (RJ-12), Sensor Ports (T/H) |
| Environmental Monitoring | Supports 2 external temperature/humidity probes (optional) |
| Operating Temp | 0°C to 60°C (32°F to 140°F) |
| Storage Temp | -30°C to 80°C (-22°F to 176°F) |
| Dimensions | 61.0" H × 1.75" W × 3.5" D (1550 × 45 × 89 mm) |
| Power Draw (Unloaded) | < 10W |
| Certifications | UL 62368-1, CSA C22.2, FCC Class A, ICES-003 Class A |
| Warranty | 2-Year Limited (Extended available) |
| Optional Accessories | Temperature/Humidity Probes, Environmental Monitors, PRO2 Linking Kit, StartUp Stick™ |
