Description

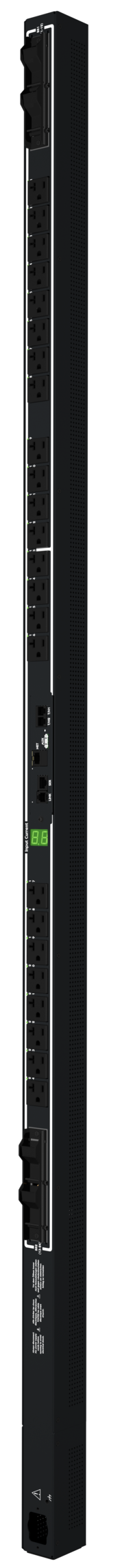

The Server Technology PRO1 C1W24VS-1AFA25A5 Switched PDU (Primary) is engineered for secure and efficient rack-level power distribution in modern data centers. Featuring 24 NEMA 5-20R outlets with high-retention locking, this PDU enables individual outlet control for remote server reboots, scheduled power cycling, and the ability to disable unused receptacles for enhanced security.
Equipped with PIPS® (Per Inlet Power Sensing) technology, the unit delivers billing-grade accurate measurement of current, voltage, power, crest factor, and energy, ensuring precise monitoring. Environmental monitoring is supported with optional temperature and humidity probes, while integrated network access allows management via HTTP(S), SSH, SNMP, LDAP(S), Telnet, and more.
Designed for reliability, the PDU meets UL and IEC 62368-1 branch circuit protection standards with 20A fuses, supports hot-swap network cards, and is rated for operation in high-temperature environments up to 60°C. With flexible mounting options and color-coded configurations, it is ideal for high-density cabinets requiring robust, intelligent power distribution.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | PRO1 |
| Model / SKU | C1W24VS-1AFA25A5 (Primary) |
| Form Factor | Vertical PDU (65.5in tall x 1.75in wide x 2.25in deep) |
| Outlets | 24 × NEMA 5-20R (≤16A @120V L-N, 20A peak) |
| Input Plug / Voltage | IEC C20 100–120V Inlet, 120V, 50/60Hz |
| Input Current | Rated 16A (20A max) |
| Power Capacity | 1.9 kW |
| Branch Circuit Protection | (2) 20A fuses, tool-less retraction, UL 60950-1 compliant |
| Monitoring | PIPS® per-inlet monitoring (V, A, W, VA, PF, crest factor, kWh) |
| Outlet Control | Switched – per outlet/group power cycling |
| Environmental Monitoring | Supports 2× temperature/humidity probes (optional) |
| Networking & Security | 10/100/1000 Mbps Ethernet, RS-232, SNMPv2/v3, HTTPS, SSH, LDAP(S), TACACS+, RADIUS |
| Temperature Rating | Operating: 0°C to 60°C (32°F to 140°F) |
| Certifications | UL 62368-1, CSA C22.2, FCC Part 15 Class A, CAN ICES-003 Class A |
| Warranty | Standard 2-year limited parts & labor (extendable) |
| Optional Accessories | EMTH-2-10 probes, EMCU-1-1C monitor, StartUp Stick™, cable retention devices |
