Description

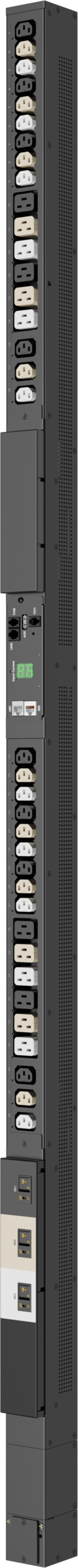

The Server Technology® PRO2 C2W36TE-2QAF2M99 Switched PDU delivers intelligent power distribution and advanced monitoring capabilities for high-density data centers. Equipped with HDOT Cx outlets, it supports both C14 and C20 plugs, ensuring flexibility and future-ready compatibility. With integrated PIPS® technology, it provides billing-grade measurement of current, voltage, power, and energy per inlet, while branch circuit monitoring adds protection against overloads.
Featuring network-based monitoring, hot-swappable network cards, and the ability to link up to four PDUs using a single IP address, this unit ensures maximum uptime and redundancy. SNMP-based alerts, environmental monitoring, and outlet-level power control make it an essential solution for reliable, efficient, and scalable rack power management.
Ideal for enterprise-class data centers, the PRO2 Switched PDU supports 60A input, provides 36 outlets (18x C13, 18x Cx), and operates safely in demanding environments up to 60 °C.
| Category | Details |
|---|---|
| Manufacturer | Server Technology, a brand of Legrand |
| Product Line | PRO2 Switched PDU |
| Model / SKU | C2W36TE-2QAF2M99 (Primary) |
| Outlets | 36 total (18 × IEC 60320 C13, 18 × HDOT Cx hybrid outlets) |
| Input Plug / Voltage | IEC 208V/60A 2P+G 6Hr, 208V, 50/60Hz |
| Input Current | 60A (rated 48A) |
| Power Capacity | 10 kW |
| Outlet Rating | C13: ≤12A @208V (15A peak) Cx: ≤16A @208V (20A peak) |
| Branch Circuit Protection | 3 × 20A 2-pole magnetic-hydraulic circuit breakers, UL 489 compliant |
| Monitoring Technology | PIPS® per inlet power sensing; branch circuit monitoring; LED auto-flip display |
| Control Features | Outlet switching (on/off, reboot per outlet/group) |
| Network Interfaces | HTTP(S), SSH, Telnet, SNMPv2c/v3, Syslog, LDAP(S), TACACS+, RADIUS, FTP/SFTP |
| Sensors Supported | 2 × external temp/humidity probes (optional accessories available) |
| Physical Dimensions | 70.0 in (H) × 2.2 in (W) × 2.5 in (D) (1778 × 56 × 64 mm) |
| Operating Temperature | 32°F to 140°F (0°C to 60°C) |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Part 15 Class A, CAN ICES-003 Class A |
| Warranty | 2-Year Limited Parts & Labor (extendable) |
| Country of Origin | United States |
