Description

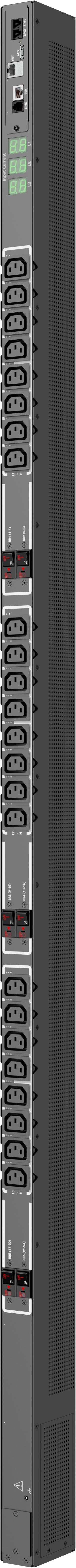

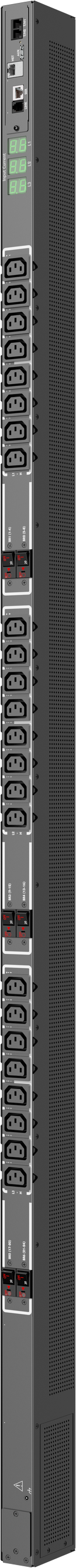

The Server Technology® PRO1 C1W24VT-4NPA15AC Switched PDU delivers intelligent power distribution and control for high-density data centers. Designed with Per Inlet Power Sensing (PIPS®) technology, it provides billing-grade accurate measurements of current, voltage, power, crest factor, and energy usage at the input.
With 24 IEC 60320 C13 outlets, hot-swappable network access, and support for a wide range of communication protocols (HTTP(S), SSH, SNMP, Telnet, FTP/SFTP, and more), this PDU simplifies remote monitoring and management. IT administrators can cycle power to individual outlets or groups, reboot locked equipment, and optimize load balancing with the auto-flip LED current display.
The unit also features branch circuit protection, high-retention locking outlets, temperature/humidity monitoring (via optional probes), and a rugged design rated for reliable operation in data center environments up to 60°C. Flexible mounting options and color-coded PDU choices make deployment simple and efficient.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line / Series | PRO1 |
| Model / SKU | C1W24VT-4NPA15AC (Primary) |
| PDU Type | Switched |
| Input Voltage | 400V, 50/60 Hz |
| Input Plug | IEC 60309 3P+N+PE, 6Hr (230/400V Wye, 16A) |
| Input Current (Rated) | 16A |
| Input Power Capacity | 11.1 kW |
| Outlets | 24 × IEC 60320 C13 (≤ 10A @ 230V L-N each) |
| Branch Circuit Protection | 6 × 1-pole 20A trip magnetic-hydraulic circuit breakers (≤ 16A each, 5 kAIC) |
| Communications & Security | 10/100/1000 Mbps Ethernet, RS-232 serial, HTTP/HTTPS, SNMP v2c/v3, SSHv2, Telnet, LDAP/LDAPS, RADIUS, TACACS+, Syslog |
| Monitoring & Control | Per Inlet Power Sensing (PIPS®), outlet control, auto-flip LED current display |
| Environmental Monitoring | Supports 2 × external temperature/humidity probes |
| Operating Environment | 0°C to 60°C, 8–90% RH (non-condensing), up to 2 km elevation |
| Storage Environment | -30°C to 80°C, up to 15 km elevation |
| Dimensions (HxWxD) | 69.0 in × 1.75 in × 3.5 in (1753 mm × 45 mm × 89 mm) |
| Power Draw (Unloaded) | < 10W |
| Certifications | EN/IEC 62368-1, CE, UKCA, RoHS, EMC compliance |
| Warranty | 2-year limited (extended support available) |
