Description

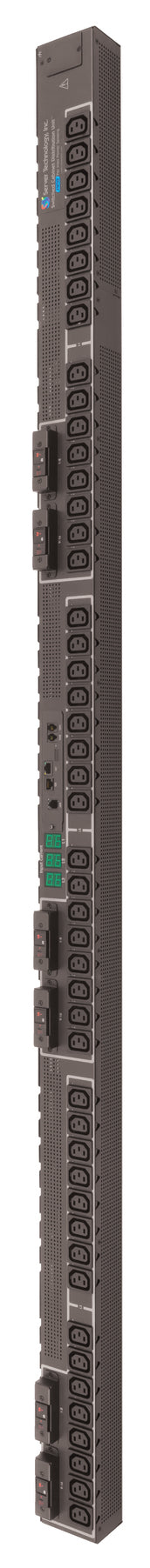

The Server Technology® PRO2 STV-4523J Switched PDU delivers precise power control and advanced monitoring for high-density data centers. Designed with PIPS® (Per Inlet Power Sensing) technology, it provides billing-grade accurate measurements for current, voltage, active power, apparent power, crest factor, power factor, and energy at the input level.
This intelligent PDU supports network-based monitoring via HTTP/HTTPS, SNMP, SSH, Telnet, and more, with secure access using LDAP, RADIUS, and TACACS+. Built-in branch current monitoring and circuit protection prevent overloads, while outlet-level control allows administrators to remotely reboot locked-up devices or disable unused outlets.
The STV-4523J is engineered for global applications, supporting 400V input with a 16A IEC 60309 plug, and outputs through 48x IEC 60320 C13 receptacles. Its durable design includes high-retention locking outlets, flexible mounting options, and high temperature tolerance up to 60°C, ensuring reliable operation in demanding environments.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | PRO2 |
| Model / SKU | STV-4523J (Primary) |
| Product Type | Switched PDU |
| Input Voltage | 400V AC |
| Input Plug | IEC 60309 3P+N+PE, 16A, 6Hr |
| Input Current | 16A Rated |
| Input Power Capacity | 11.0 kW |
| Output Receptacles | 48 × IEC 60320 C13 (≤10A @ 230V L-N) |
| Branch Circuit Protection | (6) 1-pole 20A trip circuit breakers, UL 489 / IEC compliant |
| Network Monitoring | HTTP(S), SSH, Telnet, SNMPv2c/v3, Syslog, (S)FTP, SMTP, LDAP(S), RS-232 |
| Security Protocols | IPv4/IPv6, TLS 1.2, LDAPv3/LDAPS, TACACS+, RADIUS |
| Sensors Supported | (2) external temperature/humidity probes (10 ft) |
| Dimensions | 69.0 in H × 3.25 in W × 2.25 in D (1753 × 83 × 58 mm) |
| Environmental Range | Operating: 0–60°C, 8–90% RH non-condensing |
| Power Draw (Idle) | < 10W |
| Certifications | EN/IEC 62368-1, CE, UKCA, RoHS, EMC (EN 55032/35, EN 61000-3-2/3) |
| Warranty | Standard 2-year limited (extended available) |
| Optional Accessories | EMTH-2-10 probes, EMCU-1-1C environmental monitor, PRO2 linking kit, StartUp Stick™, mounting brackets, cable retention devices |
