Description

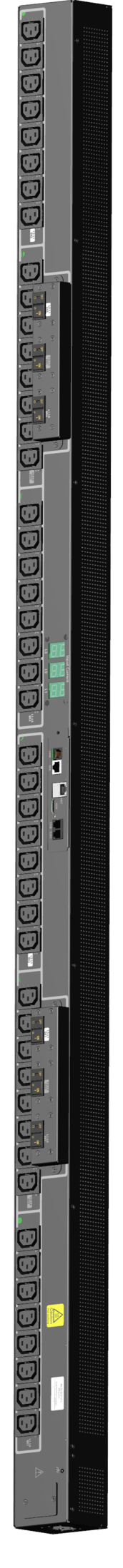

The Server Technology® PRO2 STV-4521V Switched PDU (Primary) delivers advanced power distribution, monitoring, and control for mission-critical data centers. Designed with billing-grade PIPS® (Per Inlet Power Sensing) technology, it measures current, voltage, power, energy, and more to help optimize rack-level energy use.
With network monitoring via HTTP(S), SSH, SNMP, LDAP, RS-232, and more, this unit ensures secure, real-time visibility into your power infrastructure. Its hot-swappable network card and Star Multi-Linking allow up to four circuits to share one IP address, while outlet-level switching provides remote reboot and power management.
Built for reliability, the STV-4521V supports high retention locking outlets, branch circuit protection, and operation up to 60 °C, making it ideal for high-density racks. Color-coded options and flexible mounting enhance deployment in enterprise environments.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand Group) |
| Product Line | PRO2 |
| Model / SKU | STV-4521V (Primary) |
| PDU Type | Switched |
| Input Voltage | 208 V AC |
| Input Frequency | 50/60 Hz |
| Input Plug | CS8365 3P+G, 50A |
| Input Current (Rated) | 40 A |
| Input Power Capacity | 14.4 kW |
| Outlets | 48 × IEC 60320 C13 (≤12A @ 208V, 15A peak) |
| Branch Circuit Protection | (6) × 2-pole 20A circuit breakers, UL 489 compliant |
| Per-Inlet Monitoring | Current, Voltage, Power, Apparent Power, Crest Factor, Power Factor, Energy |
| Branch Current Monitoring | Yes, with SNMP/email alerts |
| Network & Security | 10/100/1000 Mbps Ethernet, RS-232, SNMPv2c/v3, HTTP/HTTPS, SSH, Telnet, LDAP/LDAPS, TACACS+, RADIUS, FTP/SFTP |
| Environmental Monitoring | Supports 2 × temperature/humidity probes |
| Operating Temperature | 32°F to 140°F (0°C to 60°C) |
| Storage Temperature | -22°F to 176°F (-30°C to 80°C) |
| Operating Humidity | 8% – 90% RH non-condensing |
| Dimensions (HxWxD) | 69.0 in × 3.25 in × 2.75 in (1753 × 83 × 70 mm) |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Part 15 Class A, CAN ICES-003 Class A |
| Warranty | 2-year limited parts & labor (extendable) |
