Description

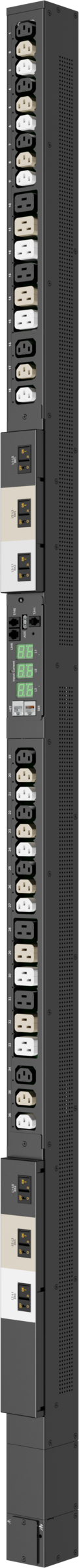

The Server Technology® PRO2 Switched PDU C2W36CE-5CAE2M66 is a high-performance Primary PDU engineered for maximum power distribution, monitoring, and reliability in mission-critical data centers. Featuring 36 outlets (24 × IEC C13 and 12 × IEC C19), this unit supports per-inlet power sensing (PIPS®), providing accurate billing-grade measurements for voltage, current, active/apparent power, power factor, crest factor, and energy consumption.
With switched outlet control, IT staff can remotely cycle power, reboot equipment, and manage unused outlets securely via Web GUI, CLI, SNMP, and LDAP integration. Advanced features include branch circuit protection, temperature/humidity monitoring with probes, and Star Multi-Linking for connecting up to four circuits with one IP address.
Designed with HDOT (High Density Outlet Technology), alternating-phase outlets, and a hot-swappable network card, the PRO2 PDU optimizes airflow, minimizes cable clutter, and ensures uptime. Rated for operation in demanding 60°C environments, it is backed by Server Technology’s 2-year limited warranty with extended support options available.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | PRO2 |
| Model / SKU | C2W36CE-5CAE2M66 (Primary) |
| Product Type | Switched PDU |
| Outlets | 36 total — (24) IEC 60320 C13, (12) IEC 60320 C19 |
| Input Voltage | 415V, 50/60Hz |
| Input Plug Type | NEMA L22-30P |
| Input Current (Max / Rated) | 30A / 24A |
| Power Capacity | 17.3 kW |
| Branch Circuit Protection | UL 489 2-pole 20A breakers; 6 branches |
| Monitoring | PIPS® per-inlet sensing; branch current monitoring; SNMP/email alerts |
| Communications | 10/100/1000 Mbps Ethernet, RS-232, HTTP/HTTPS, SSH, SNMP v2c/v3, LDAP, TACACS+, RADIUS |
| Environmental Range | Operating: 0–60 °C, 8–90% RH non-condensing |
| Physical Dimensions | 70.0 in (H) × 2.2 in (W) × 2.5 in (D) / 1778 mm × 56 mm × 64 mm |
| Mounting Options | Tool-less button mounts; optional brackets |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Class A, CAN ICES-003 Class A |
| Warranty | 2-year limited (extended options available) |
| Optional Accessories | Temp/Humidity probes, Environmental Monitor (EMCU), PRO2 Link Kits, Startup Stick™, cable retention devices |
