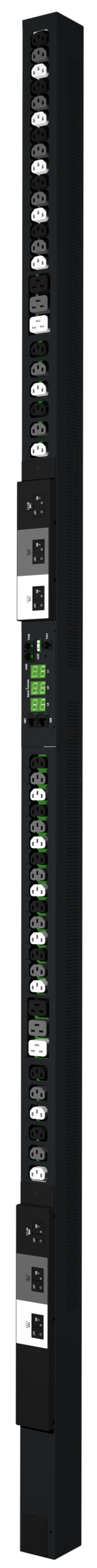

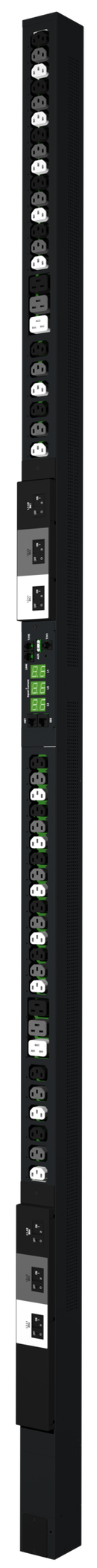

The Server Technology® PRO2 C2W48TE-5CAE2M99 Switched PDU is designed for high-density data centers requiring precise power monitoring, secure network access, and reliable outlet control. Featuring 48 outlets (30 x IEC C13 and 18 x Cx hybrid outlets), this PDU ensures flexible connectivity for diverse IT loads. With PIPS® per-inlet power sensing, branch current monitoring, and networked outlet control, IT administrators gain visibility and control over power usage down to the outlet level.
The unit supports alternating-phase outlet configuration for load balancing, hot-swappable network cards for redundancy, and environmental monitoring with optional probes. Built for demanding environments, it is tested for safe operation in 60°C data centers, backed by UL/IEC certifications, and comes with a standard 2-year warranty.
| Category | Details |
|---|---|
| Manufacturer | Server Technology, Inc (Legrand) |
| Product Series | PRO2 |
| Model | C2W48TE-5CAE2M99 |
| Product Type | Switched PDU |
| Outlets | 48 total — (30) IEC 60320 C13, (18) Cx hybrid (C13/C19 compatible) |
| Input Voltage | 415V |
| Input Plug | NEMA L22-30P |
| Input Current | 30A (Rated 24A) |
| Input Power Capacity | 17.3 kW |
| Frequency | 50/60 Hz |
| Per-Inlet Monitoring | Current, Voltage, Power (W, VA), Energy, Crest Factor, Power Factor |
| Branch Protection | 6x UL 489 2-pole 20A breakers, ≤16A, 10 kAIC (NA) / 5 kAIC (ROW) |
| Network Monitoring | HTTP(S), SSH, Telnet, SNMP (v2c/v3), Syslog, LDAP(S), RADIUS, TACACS+ |
| Environmental Sensors | Supports 2x Temperature/Humidity probes (SNMP/email alerts) |
| Dimensions | 80.0 in H x 2.2 in W x 2.5 in D (2032mm x 56mm x 64mm) |
| Operating Temp | 0°C to 60°C (32°F to 140°F), up to 6,500 ft |
| Storage Temp | -30°C to 80°C (-22°F to 176°F), up to 50,000 ft |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Part 15 Class A, CAN ICES-003 Class A |
| Warranty | 2-Year Limited (Extended support available) |
