Description

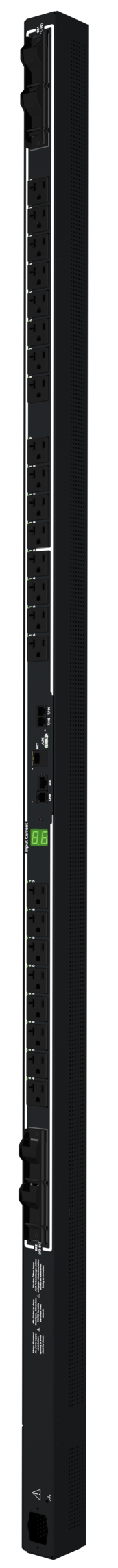

The Server Technology® PRO1 C1W24VS-1DFA25A5 Switched PDU delivers advanced power distribution with intelligent monitoring and outlet-level control. Designed for high-density data centers, this PDU features PIPS® Per Inlet Power Sensing for billing-grade measurement of current, voltage, active/apparent power, crest factor, power factor, and energy. Local LED input monitoring and secure remote access (via Web, CLI, and SNMP) ensure precise load management across phases, reducing the risk of overloads.
Built to operate in demanding environments up to 60 °C, the C1W24VS includes hot-swappable network cards, branch circuit protection, high-retention locking outlets, and compatibility with optional temperature/humidity sensors. Its flexible mounting options and color-coded chassis streamline deployment in diverse rack configurations.
For reliable uptime, outlet-level switching enables remote rebooting and power cycling of connected devices, while star multi-linking supports expansion across redundant power feeds—all manageable through one IP address. Engineered for enterprise-class scalability, this PDU enhances power visibility, security, and control in mission-critical facilities.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Series | PRO1 |
| Model / SKU | C1W24VS-1DFA25A5 (Primary) |
| Product Type | Switched PDU |
| Outlets | 24 × NEMA 5-20R (≤16A @120V L-N, 20A peak) |
| Input Plug | NEMA L5-30P |
| Input Voltage | 120V, 50/60 Hz |
| Input Current (Rated) | 24A (30A Max) |
| Input Power Capacity | 2.8 kW |
| Branch Circuit Protection | (2) × 20A fuses (Bussmann SC-20), UL 60950-1 compliant, 100 kAIC rating |
| Monitoring Technology | PIPS® Per Inlet Power Sensing (Current, Voltage, Power, PF, Energy, Crest) |
| Communications | Ethernet 10/100/1000 (RJ-45), RS-232, SNMP v2/v3, HTTPS/SSH/Telnet, LDAP/Radius/TACACS+ |
| Environmental Monitoring | Supports 2 × external T/H probes (optional) |
| Dimensions (HxWxD) | 65.5 × 1.75 × 2.25 in (1664 × 45 × 58 mm) |
| Operating Temp | 32°F to 140°F (0°C to 60°C) |
| Storage Temp | -22°F to 176°F (-30°C to 80°C) |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Part 15 Class A, CAN ICES-003 Class A |
| Power Accuracy | ±1% Voltage, ±1% Active/Apparent Power, ±3% PF, ±1% Energy |
| Network Features | Hot-swap network card, outlet control, star multi-linking |
| Warranty | 2-Year limited (extendable) |
