Description

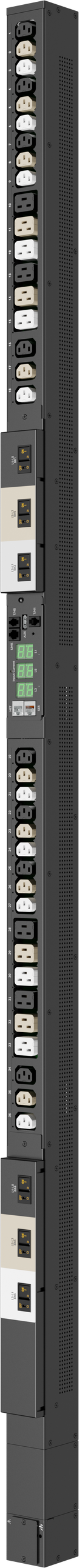

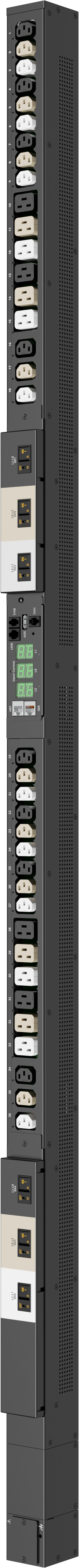

The Server Technology® PRO2 Switched PDU (C2W36CE-4PAE2M66 Primary) delivers advanced power distribution, monitoring, and control for modern data centers. Equipped with Per Inlet Power Sensing (PIPS®) technology, it provides highly accurate measurements of current, voltage, power, and energy usage. IT personnel can manage loads safely with local LED input current monitoring and web/SNMP access.
Designed with High Density Outlet Technology (HDOT), this unit offers maximum outlet density and alternating-phase outlets to optimize load balancing and airflow. Integrated branch current monitoring, UL 489 compliant circuit protection, and support for environmental monitoring make it a reliable choice for mission-critical environments.
With network connectivity options (HTTP(S), SNMP, SSH, Telnet, LDAP, RADIUS, Syslog, etc.) and the ability to link multiple PDUs under a single IP, the PRO2 Switched PDU enhances scalability, security, and uptime. Tested for operation in up to 60°C environments, this PDU is engineered for high-density racks and enterprise-class reliability.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand Group) |
| Product Line | PRO2 Series |
| Model | C2W36CE-4PAE2M66 (Primary) |
| PDU Type | Switched |
| Input Voltage | 400V |
| Input Plug/Connector | IEC 60309 3P+N+PE 6Hr, 230/400V Wye, 32A |
| Input Current (Rated) | 32A |
| Input Power Capacity | 22 kW |
| Outlets | 24 × IEC 60320 C13 (≤10A @230V L-N) 12 × IEC 60320 C19 (≤16A @230V L-N) |
| Branch Protection | Six (6) UL 489 2-pole, 20A breakers |
| Dimensions (H×W×D) | 70.0 in × 2.2 in × 2.5 in (1778 mm × 56 mm × 64 mm) |
| Operating Environment | 0°C to 60°C (32°F to 140°F), 8–90% RH, up to 6,500 ft (2 km) elevation |
| Storage Environment | -30°C to 80°C (-22°F to 176°F), up to 15 km elevation |
| Network & Security | 10/100/1000 Mbps Ethernet, RS-232, HTTP/HTTPS, SNMPv2c/v3, SSH, Telnet, LDAP/LDAPS, TACACS+, RADIUS, FTP/SFTP |
| Monitoring | PIPS® per-inlet monitoring, branch current monitoring, outlet control, LED auto-flip current display |
| Certifications | EN/IEC 62368-1 (Safety), CE, UKCA, RoHS, EMC (EN 55032, EN 55035, etc.) |
| High Temperature Rating | Safe for continuous operation up to 60°C |
| Warranty | 2-year limited parts & labor (extended support available) |
