Description

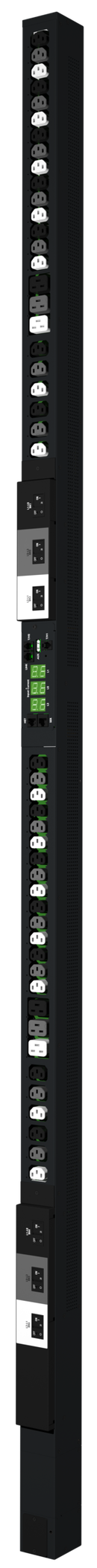

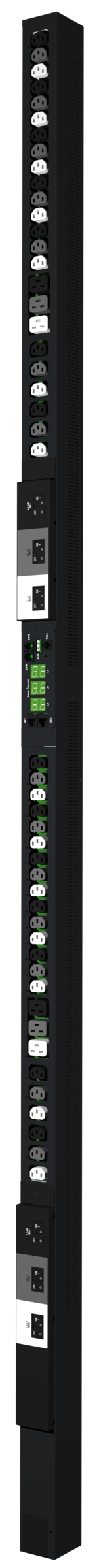

The Server Technology® PRO2 C2W48TE-4PAE2M99 Switched PDU is engineered for modern data centers that require intelligent power management, monitoring, and control. This 48-outlet, three-phase switched PDU provides IT personnel with remote access to critical power data and precise outlet-level control. Featuring PIPS® (Per Inlet Power Sensing) and advanced measurement accuracy, it delivers billing-grade monitoring of current, voltage, active and apparent power, crest factor, and energy.
Designed for high-density environments, this model includes HDOT Cx outlets supporting both C14 and C20 plugs, ensuring future-ready flexibility. Integrated network monitoring (HTTP/HTTPS, SNMPv3, SSH, and more) allows seamless integration with your existing infrastructure. The Auto-Flip Current Display and alternating-phase outlets simplify load balancing, while hot-swappable network cards, star multi-linking, and branch circuit protection ensure resilient, secure operation.
With a 22kW power capacity, UL-certified branch protection, and an extended operating temperature rating up to 60°C, the PRO2 C2W48TE-4PAE2M99 is built for demanding enterprise applications.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Series | PRO2 |
| Model | C2W48TE-4PAE2M99 (Primary) |
| Type | Switched PDU |
| Outlets | 48 total: (30) IEC C13, (18) Cx (C13/C19 hybrid) |
| Input Voltage | 400V (Wye 230/400V, 50/60Hz) |
| Input Plug | IEC 60309 3P+N+PE 32A, 6Hr |
| Input Current | 32A |
| Power Capacity | 22 kW |
| Branch Circuit Protection | UL 489 rated breakers, 6 branch circuits, ≤16A each |
| Measurements | Current, Voltage, Power, Apparent Power, Crest Factor, Power Factor, Energy (±1% accuracy) |
| Network Monitoring | HTTP/HTTPS, SNMP v2c/v3, SSH, Telnet, Syslog, LDAP/LDAPS, RADIUS, TACACS+, FTP/SFTP |
| Communications Ports | Gigabit Ethernet (RJ-45), RS-232, RJ-12 Link port |
| Environmental Range | Operating: 0–60°C (32–140°F), 8–90% RH; Storage: -30–80°C |
| Physical Dimensions | 80” H × 2.2” W × 2.5” D (2032 × 56 × 64 mm) |
| Weight | [Not specified, typically available on request] |
| Mounting Options | Tool-less button mounts; custom bracket support |
| Certifications | EN IEC 62368-1, CE, UKCA, RoHS, EMC compliance |
| Warranty | 2-Year Limited Parts & Labor (extendable) |
