Description

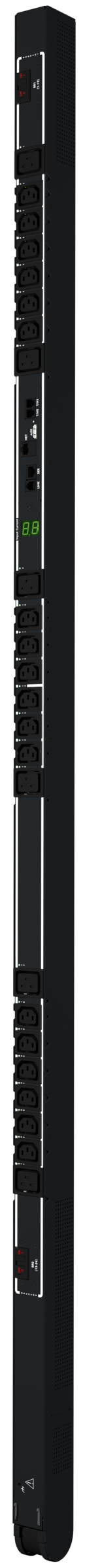

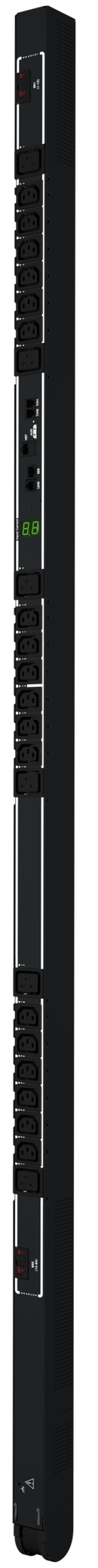

The Server Technology® PRO1 STV-4541A Switched PDU delivers intelligent power distribution with per-outlet control, advanced monitoring, and secure network management for mission-critical data centers. Equipped with PIPS® (Per Inlet Power Sensing) technology, it provides billing-grade accuracy for current, voltage, power, and energy metrics.
Designed for high-density racks, the STV-4541A supports local LED input current monitoring, outlet-level switching for rebooting devices, and SNMP-based alerts for environmental thresholds when paired with optional sensors. Its hot-swappable network card ensures uptime, while branch circuit protection, high-retention locking outlets, and a 90° rotatable Power Pivot™ cord guarantee reliability and safety.
With 18x IEC C13 and 6x IEC C19 outlets, flexible mounting options, and compatibility with color-coded circuit identification, this PDU is engineered for data centers that demand maximum uptime, efficiency, and control.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Series | PRO1 |
| Model / SKU | STV-4541A |
| Product Type | Switched PDU |
| Input Voltage | 208V |
| Input Current (Rated) | 16A (20A Max) |
| Input Plug | IEC C20 (200–240V Inlet) |
| Input Power Capacity | 3.3 kW |
| Outlets | 18 × IEC 60320 C13, 6 × IEC 60320 C19 |
| Outlet Features | High retention locking, outlet-level switching |
| Branch Circuit Protection | UL 489 compliant, 20A trip breakers |
| Networking & Protocols | HTTP/HTTPS, SSH, Telnet, SNMP v2/v3, LDAP(S), RADIUS, TACACS+, Syslog |
| Communications Ports | 1 × RJ-45 Ethernet, RS-232, 2 × sensor ports, Link port |
| Monitoring Features | PIPS® (per-inlet monitoring), temperature/humidity sensor support, auto-flip current display |
| Environmental Rating | Operating: 0–60°C (32–140°F), up to 90% RH, 6,500 ft elevation |
| Physical Dimensions | 69.0 in (1753 mm) H × 1.75 in (45 mm) W × 2.25 in (58 mm) D |
| Certifications | UL 62368-1, CSA, CE, FCC Class A, RoHS, UKCA |
| Warranty | 2-Year Limited (Extended options available) |
