Description

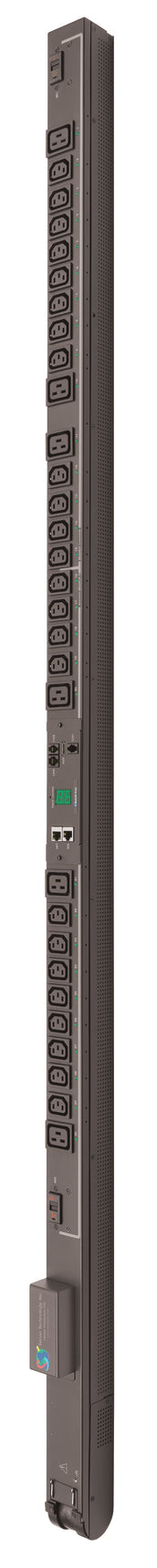

The Server Technology® PRO2 STV-4501D Switched PDU delivers advanced power distribution, monitoring, and control for modern data centers. Equipped with PIPS® (Per Inlet Power Sensing) technology, it provides billing-grade measurement of current, voltage, power, and energy usage per inlet, helping IT personnel manage capacity, prevent overloads, and optimize uptime.
Featuring 30 total outlets (24 × C13, 6 × C19), hot-swappable network cards, and flexible star multi-linking, this PDU supports expansion and redundancy without daisy-chain risks. Integrated SNMP, web GUI, and CLI interfaces ensure secure remote management.
Designed for demanding environments, the STV-4501D includes branch circuit protection, outlet-level control, and temperature/humidity monitoring. Its high-retention locking outlets, rotatable power cord (Power Pivot™), and multiple color-coded chassis options simplify deployment and maintenance. Built for reliability, it operates safely up to 60 °C and is backed by a standard 2-year warranty.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | PRO2 Series |
| Model / SKU | STV-4501D (Primary) |
| PDU Type | Switched PDU |
| Input Voltage | 230V, 50/60 Hz |
| Input Plug | IEC C20 230V Inlet |
| Input Current | 16A (Rated 16A) |
| Power Capacity | 3.6 kW |
| Outlets | (24) × IEC 60320 C13 (≤10A @230V) (6) × IEC 60320 C19 (≤16A @230V) |
| Branch Circuit Protection | 2-pole 20A UL 489 circuit breakers, ≤16A rating |
| Monitoring | PIPS® per-inlet sensing, branch current monitoring |
| Communications | 10/100/1000 Mbps Ethernet (RJ-45), RS-232 serial, SNMP v2c/v3, HTTP/HTTPS, SSH, Telnet, LDAP/LDAPS, TACACS+, RADIUS |
| Environmental Monitoring | Supports 2 × temperature/humidity probes (10 ft) |
| Physical Dimensions | 69.0" × 2.2" × 2.3" (1753 × 56 × 59 mm) |
| Operating Temperature | 32°F to 140°F (0°C to 60°C) |
| Storage Temperature | -22°F to 176°F (-30°C to 80°C) |
| Certifications | EN IEC 62368-1, CE, UKCA, RoHS, EMC compliance |
| Additional Features | Outlet control, hot-swap network card, Power Pivot™ rotatable cord, high-retention locking outlets, color-coded chassis options |
| Warranty | 2-year limited parts & labor (extended options available) |
