Description

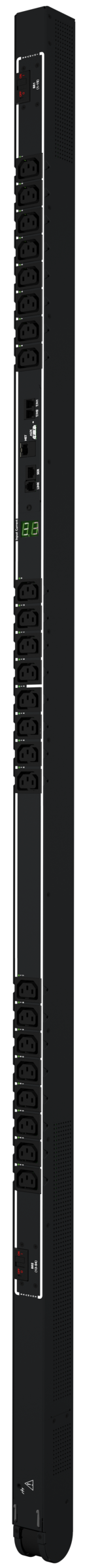

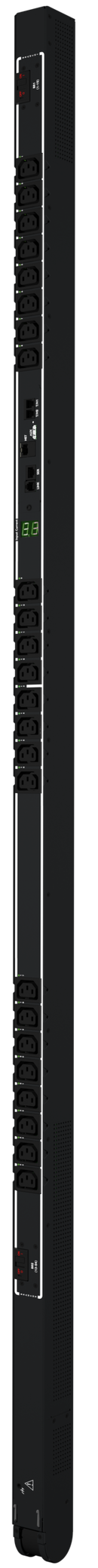

The Server Technology® PRO1 STV-4540D Switched PDU delivers intelligent power distribution with advanced monitoring and control for modern data centers. Featuring Per Inlet Power Sensing (PIPS®), it provides billing-grade accuracy for current, voltage, power, and energy monitoring. With outlet-level switching, IT administrators can reboot devices remotely, optimize rack power usage, and prevent overloads.
Engineered with hot-swappable network cards, temperature/humidity monitoring, and secure remote access via Web, CLI, or SNMP, the STV-4540D ensures reliable performance. Its flexible mounting options, high-retention outlets, and Power Pivot™ rotatable cord simplify deployment in high-density environments.
Ideal for enterprise data centers seeking efficiency, reliability, and scalability, the STV-4540D can link with additional units, enabling streamlined management across multiple power circuits.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | PRO1 Switched PDU |
| Model / SKU | STV-4540D |
| Outlets | 24 x IEC 60320 C13 (≤10A @ 230V L-N) |
| Input Plug | IEC C20 230V Inlet |
| Input Voltage | 230V AC |
| Input Current | 16A (Rated) |
| Power Capacity | 3.6 kW |
| Branch Circuit Protection | UL 489 / IEC 60947-2, 2-pole 20A breakers, ≤16A rating |
| Dimensions (HxWxD) | 69.0 in x 1.75 in x 2.25 in (1753 x 45 x 58 mm) |
| Operating Temp | 0°C to 60°C (32°F to 140°F) |
| Storage Temp | -30°C to 80°C (-22°F to 176°F) |
| Altitude | Operating: up to 6,500 ft (2km), Storage: up to 50,000 ft (15km) |
| Communication | 10/100/1000 Mbps Ethernet, RS-232, Web GUI, CLI (HTTP/HTTPS, SNMP, SSH, Telnet) |
| Security | IPv4/IPv6, LDAP/LDAPS, RADIUS, TACACS+, Syslog, TLSv1.2 |
| Monitoring | PIPS® per-inlet monitoring (Current, Voltage, Power, PF, Crest Factor, Energy) |
| Environmental Sensors | Supports up to 2 temperature/humidity probes |
| Mounting | Standard button mounts & optional custom brackets |
| Cord Management | Power Pivot™ 90° rotatable power cord |
| Certifications | CE, UKCA, EN IEC 62368-1, RoHS, EMC (EN 55032/35, EN 61000-3-2/3) |
| Warranty | 2-Year Limited Warranty (Extended support available) |
