Description

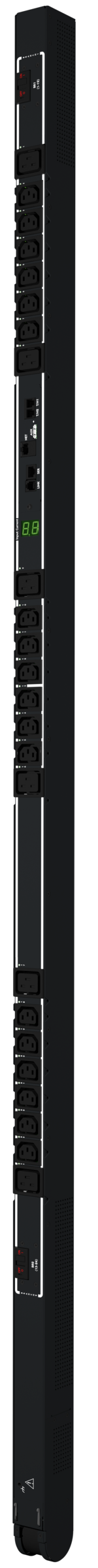

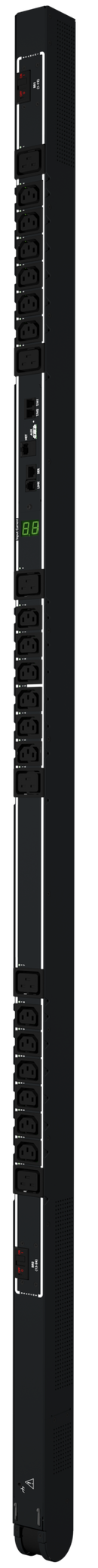

The Server Technology® PRO1 STV-4541D Switched PDU delivers reliable power distribution with advanced monitoring and remote management features for high-density data centers. Equipped with 24 outlets (18x C13, 6x C19), the unit supports 16A @ 230V with a total power capacity of 3.6 kW.
Built with Per Inlet Power Sensing (PIPS®), it provides billing-grade accurate measurements of current, voltage, power, crest factor, and energy usage per inlet. Network administrators can monitor and manage loads via a wide range of protocols, including HTTP/HTTPS, SSH, Telnet, SNMPv2/v3, LDAP, RADIUS, and TACACS+.
Designed for demanding environments, the STV-4541D operates safely at up to 60°C and includes features like outlet control, branch circuit protection, temperature/humidity monitoring, and auto-flip LED current displays for load balancing. Flexible mounting, color-coded options, and a rotatable Power Pivot™ cord make deployment simple and efficient.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand Group) |
| Series | PRO1 |
| Model | STV-4541D (Primary) |
| Product Type | Switched PDU |
| Outlets | 18 × IEC 60320 C13 (≤10A @230V) 6 × IEC 60320 C19 (≤16A @230V) |
| Input Voltage | 230V |
| Input Plug | IEC C20 (230V Inlet) |
| Input Current | 16A |
| Power Capacity | 3.6 kW |
| Branch Circuit Protection | 2 × UL 489 Magnetic-Hydraulic Circuit Breakers, 20A trip, ≤16A rating |
| Networking & Security | 10/100/1000 Mbps Ethernet, RS-232, Link port Protocols: HTTP/HTTPS, SSH, SNMP v2/v3, LDAP, RADIUS, TACACS+ |
| Monitoring | PIPS® per inlet power sensing Optional environmental probes (temperature/humidity, water, dry contact) |
| Operating Temp. | 0°C to 60°C (32°F to 140°F) |
| Storage Temp. | -30°C to 80°C (-22°F to 176°F) |
| Physical Dimensions | 69.0" H × 1.75" W × 2.25" D (1753 × 45 × 58 mm) |
| Certifications | EN/IEC 62368-1, CE, UKCA, RoHS, EMC compliant |
| Warranty | 2-year limited parts & labor (extendable) |
