Description

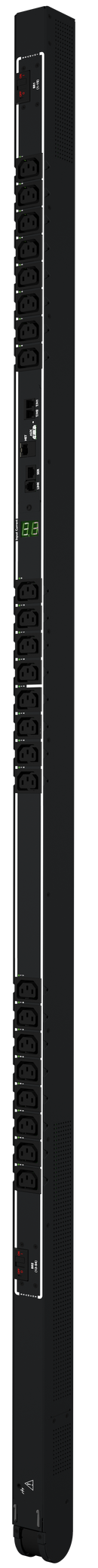

The Server Technology® PRO1 STV-4540C Switched PDU delivers intelligent power distribution and advanced monitoring for modern data centers. Designed for high-density rack environments, this 24-outlet primary PDU combines outlet-level control with accurate per-inlet power sensing (PIPS®) to simplify load balancing and ensure uptime.
Featuring hot-swap network cards, temperature/humidity monitoring, branch circuit protection, and flexible mounting options, the STV-4540C ensures safe, reliable, and efficient power delivery. IT personnel can remotely monitor, cycle, or disable outlets via secure network protocols (HTTP/HTTPS, SSH, SNMP, LDAP, RADIUS, and more). Its 90° rotatable Power Pivot™ cord and high-retention locking outlets allow for streamlined deployment in demanding data center environments.
With billing-grade measurement accuracy and integration into DCIM/BMS platforms, this PDU supports compliance, energy management, and proactive capacity planning.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Series | PRO1 |
| Model | STV-4540C (Primary) |
| Product Type | Switched Rack PDU |
| Outlets | 24 × IEC 60320 C13 |
| Input Plug | NEMA L6-30P |
| Input Voltage | 208 V |
| Input Current (Rated) | 24 A (30 A max) |
| Input Power Capacity | 5.0 kW |
| Branch Circuit Protection | (2) UL 489 magnetic-hydraulic circuit breakers, ≤16A, 5 kAIC |
| Monitoring Technology | PIPS® (Per Inlet Power Sensing) |
| Communications | 10/100/1000 Ethernet, RS-232, HTTP/HTTPS, SSH, Telnet, SNMP v2/v3, LDAP, TACACS+, RADIUS, FTP/SFTP |
| Temperature/Humidity Monitoring | Supports (2) external 10 ft probes (optional) |
| Measurement Accuracy | Current ±1%, Voltage ±1%, Power ±1%, Energy ±1% |
| Physical Dimensions | 69.0 in (H) × 1.75 in (W) × 2.25 in (D) |
| Operating Environment | 32°F to 140°F (0°C to 60°C), 8–90% RH, up to 6,500 ft |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Part 15 Class A, CAN ICES-003 Class A |
| Warranty | 2-year limited (extended options available) |
| Optional Accessories | EMTH-2-10 T/H probe, EMCU-1-1C Environmental Monitor, StartUp Stick™, cable retention devices |
