Description

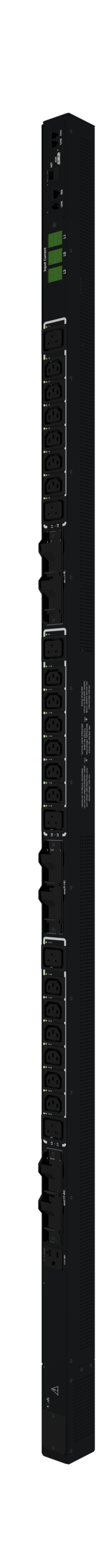

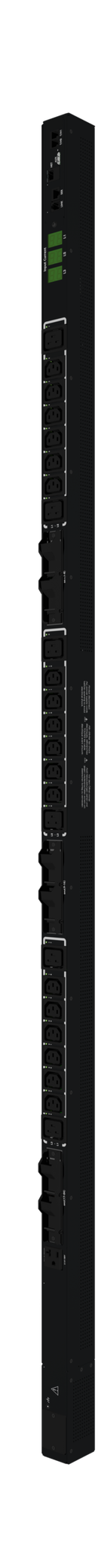

The Server Technology® PRO2 C1W24VS-DCFA11A1 Switched PDU (Primary) is a high-performance power distribution unit designed for mission-critical data center environments. With 24 outlets (18 x IEC C13 and 6 x IEC C19), this three-phase PDU delivers 8.6 kW power capacity at 208V, ensuring reliable power distribution across dense IT racks.
Engineered with outlet-level switching control, it enables administrators to cycle, reboot, or shut down individual outlets or groups remotely. Integrated network monitoring supports multiple secure protocols (HTTP/HTTPS, SNMPv3, SSH, LDAP, RADIUS, and more) for advanced visibility and control.
The hot-swappable network card design provides continuous access, while branch circuit protection with UL-rated fuses ensures compliance and operational safety. Additional features include high-retention locking outlets, support for temperature/humidity monitoring, and flexible mounting options for streamlined integration.
This PDU is part of Server Technology’s PRO2 platform, offering scalability with star multi-linking for up to four power circuits under one IP address. Designed for high-density data centers, it simplifies load balancing, improves uptime, and supports future growth.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Series | PRO2 |
| Model / SKU | C1W24VS-DCFA11A1 (Primary) |
| Product Type | Switched PDU |
| Outlets | 24 total: (18) IEC 60320 C13, (6) IEC 60320 C19 |
| Input Voltage | 208V |
| Input Plug | NEMA L15-30P |
| Input Current (Rated) | 24A (30A plug) |
| Power Capacity | 8.6 kW |
| Frequency | 50/60 Hz |
| Branch Circuit Protection | (6) 20A Fuses (Bussmann SC-20, 100kAIC interrupt rating) |
| Dimensions (HxWxD) | 69.0 x 1.75 x 2.25 in (1753 x 45 x 58 mm) |
| Operating Environment | 32°F to 122°F (0°C to 50°C), 8–90% RH non-condensing |
| Storage Environment | -22°F to 176°F (-30°C to 80°C) |
| Altitude Support | Operating: 6,500 ft (2km); Storage: 50,000 ft (15km) |
| Networking & Security | 10/100/1000 Mbps Ethernet, SNMP v2/v3, HTTPS/SSH, LDAP/LDAPS, RADIUS, TACACS+, Syslog |
| Monitoring Features | Outlet-level switching, temperature & humidity monitoring (optional probes) |
| Certifications | UL 62368-1, CSA C22.2, FCC Part 15 Class A, CAN ICES-003 Class A |
| Warranty | Standard 2-year limited (extended available) |
