Description

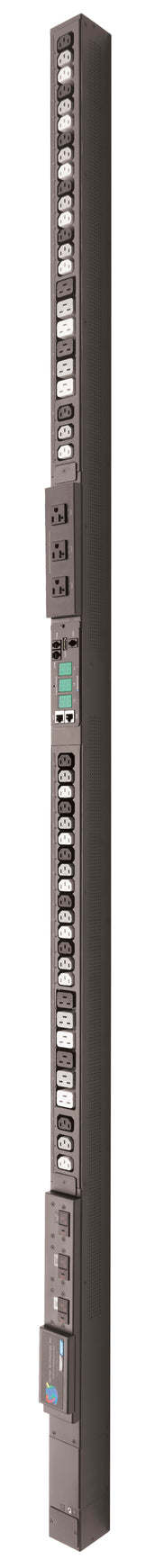

The Server Technology® PRO2 C2W48TE-DCMFAM99 Switched PDU delivers advanced power distribution with precise control, monitoring, and reliability for modern data centers. Designed with HDOT Cx outlets, this PDU accommodates both C14 and C20 plugs, offering flexibility and future-ready compatibility. With Per Inlet Power Sensing (PIPS®), it provides billing-grade accuracy for monitoring current, voltage, power, crest factor, and energy consumption.
Equipped with branch current monitoring, outlet-level control, and SNMP-based alerts, it enhances uptime and energy efficiency. The hot-swap network card and Star Multi-Linking technology enable seamless network resilience by linking multiple PDUs under one IP address. Built to perform in demanding environments, it supports up to 8.6 kW capacity and operates safely at temperatures up to 60°C.
Ideal for high-density rack environments, this PRO2 Switched PDU ensures secure, intelligent, and efficient power management with flexible mounting options and color-coded configurations for easier data center management.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | PRO2 |
| Model / SKU | C2W48TE-DCMFAM99 |
| Product Type | Switched PDU |
| Outlets | 48 total (30 x IEC 60320 C13, 18 x Cx hybrid C13/C19) |
| Input Voltage | 208V AC |
| Input Plug | NEMA L15-30P |
| Input Current | 30A (Rated 24A) |
| Power Capacity | 8.6 kW |
| Frequency | 50/60 Hz |
| Monitoring | PIPS® per inlet power sensing (Current, Voltage, Power, Crest Factor, Energy) |
| Branch Circuit Protection | UL 489, CSA C22.2, IEC/EN 60947-2 compliant breakers |
| Network Interfaces | 10/100/1000 Mbps Ethernet (RJ-45), RS-232 serial, Web GUI/CLI, SNMP, SSH, Telnet, LDAP, RADIUS, TACACS+ |
| Environmental Monitoring | Supports 2 external temperature/humidity probes (SNMP/email alerts) |
| Operating Temp | 32°F to 140°F (0°C to 60°C) |
| Storage Temp | -22°F to 176°F (-30°C to 80°C) |
| Mounting | 0U rack-mountable with flexible options |
| Dimensions | 80.0” H x 2.2” W x 2.5” D (2032mm x 56mm x 64mm) |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Part 15 Class A, CAN ICES-003 Class A |
| Warranty | 2-year limited parts & labor (extended support available) |
