Description

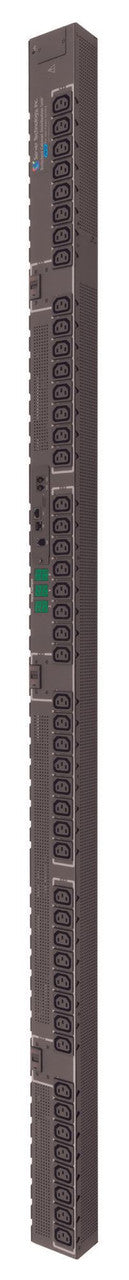

The Server Technology® PRO2 Switched PDU STV-4522E delivers advanced rack power distribution with full outlet control and industry-leading monitoring. Designed for modern high-density data centers, it provides billing-grade accurate measurements of current, voltage, power, and energy with integrated PIPS® technology.
Featuring outlet switching, hot-swap network cards, and branch circuit protection, this 48-outlet PDU ensures maximum uptime and simplified load balancing. Networked monitoring is available via HTTP(S), SSH, SNMP, Telnet, and RS-232, while environmental sensors support real-time temperature and humidity alerts.
With support for star multi-linking, up to four PDUs can share one IP address, making management scalable and efficient. Built for 60°C environments, the STV-4522E is a reliable choice for mission-critical power delivery in enterprise and colocation data centers.
| Category | Details |
|---|---|
| Manufacturer | Server Technology, Inc (a Legrand brand) |
| Product Series | PRO2 |
| Model | STV-4522E (Primary) |
| Outlets | 48 × IEC 60320 C13 (≤12A @ 208V, 15A peak) |
| Input Voltage | 208V AC, 50/60Hz |
| Input Plug | NEMA L15-30P |
| Input Current (Max Rated) | 30A (24A rated continuous) |
| Power Capacity | 8.6 kW |
| Branch Circuit Protection | 3 × 2-pole, 20A UL 489 magnetic-hydraulic breakers (≤16A per branch) |
| Monitoring | PIPS® per-inlet power sensing, branch current monitoring, LED per-phase current display |
| Outlet Control | Switched (individual/group control, remote reboot) |
| Communications | 10/100/1000 Mbps Ethernet (RJ-45), RS-232 serial, SNMP v2/v3, HTTPS/SSH, LDAP/LDAPS, RADIUS, TACACS+ |
| Environmental Sensors | 2 × temp/humidity sensor ports (optional probes) |
| Dimensions (H×W×D) | 69.0 × 3.25 × 2.25 in (1753 × 83 × 58 mm) |
| Operating Environment | 32°F–140°F (0°C–60°C), 8–90% RH non-condensing, up to 6,500 ft |
| Certifications | UL 62368-1, CSA 62368-1, FCC Part 15 Class A, CAN ICES-003 Class A |
| Warranty | 2-year limited (extended support available) |
