Description
The Server Technology® PRO2 Switched POPS PDU (C2WG24SN-4NJN5D6) delivers advanced outlet-level monitoring and intelligent power management for high-density data centers. Equipped with PIPS® (Per Inlet Power Sensing) and POPS® (Per Outlet Power Sensing), this PDU provides billing-grade accurate measurements for current, voltage, power, and energy consumption.

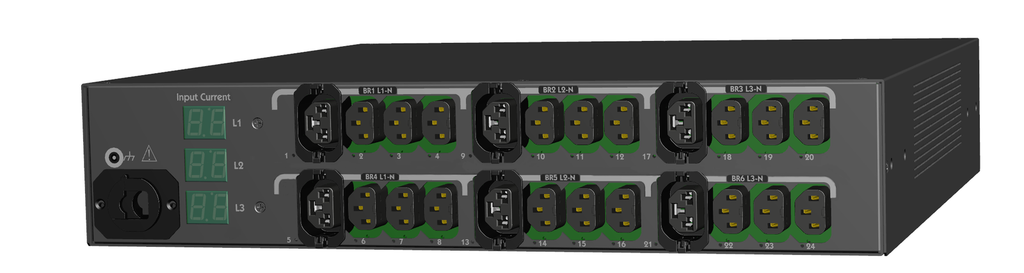

Designed with HDOT Cx outlets, it supports both C14 and C20 plugs, offering maximum flexibility. IT personnel gain real-time insights through a built-in web GUI, CLI, and SNMP access, while outlet control allows remote rebooting and optimized energy use.
Additional features include branch circuit protection, temperature/humidity monitoring, star multi-linking up to four circuits with one IP, and high-retention locking outlets for secure connectivity. With hot-swappable network cards, color-coded options, and SNMP-based alerts, this PDU ensures reliability, efficiency, and operational control for mission-critical environments.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | PRO2 |
| Product Type | Switched POPS PDU |
| Model / SKU | C2WG24SN-4NJN5D6 |
| Input Voltage | 400V |
| Frequency | 50/60 Hz |
| Input Plug | IEC 60309 3P+N+PE, 16A, 6Hr |
| Input Current | 16A |
| Input Power Capacity | 11.0 kW |
| Outlets | 18 × IEC 60320 C13 (≤10A @230V L-N) 6 × Cx Hybrid (≤16A @230V L-N) |
| Outlet Control | Individual/group switching |
| Monitoring | PIPS® (per inlet), POPS® (per outlet), branch current monitoring |

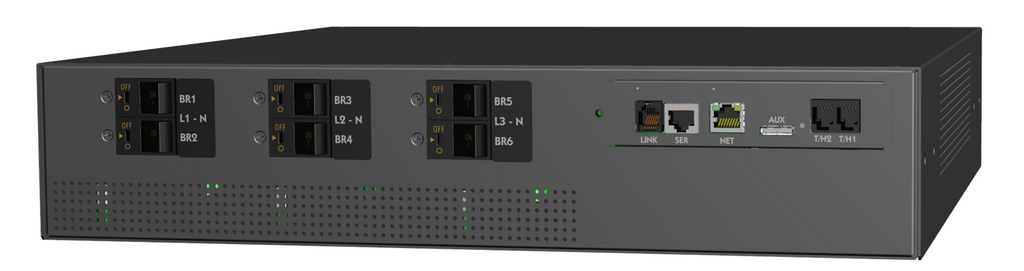

| Branch Circuit Protection | UL 489 rated circuit breakers, ≤16A, 6 branches |
| Communications | 10/100/1000 Mbps Ethernet, RS-232, HTTP/HTTPS, SSH, SNMP v2/v3, LDAP/LDAPS, RADIUS, TACACS+ |
| Environmental Monitoring | Supports 2x temperature/humidity probes |
| Operating Environment | 0°C to 50°C, 8–90% RH, ≤2km elevation |
| Storage Environment | -30°C to 80°C, ≤15km elevation |
| Power Draw (Idle) | < 10W |
| Dimensions | 3.5" H × 17.2" W × 17.5" D (89 × 437 × 445 mm) |
| Certifications | EN/IEC 62368-1, CE, UKCA, RoHS, EMC (EN 55032/35, IEC 61000-3-2/3) |
| Warranty | 2-Year Limited (extended options available) |
